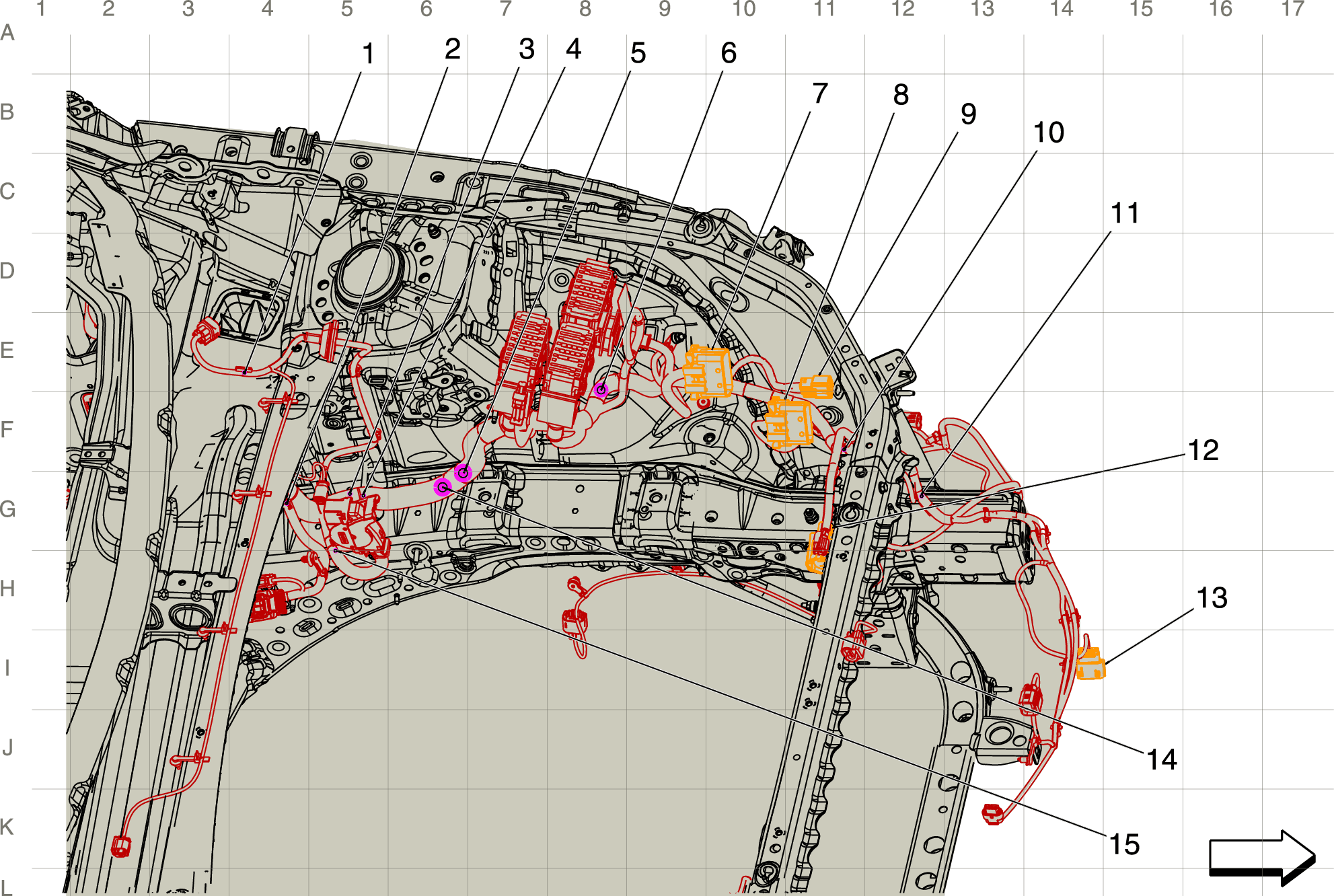

Body Harness Routing - Engine Compartment - Left Side Engine Compartment (HP4)
| Items |
|---|
| 1. J104 |
| 2. J108 (HP4) |
| 3. J107 |
| 4. J106 |
| 5. J102 |
| 6. J101 |
| 7. X115 X115 Engine Harness to Body Harness |
| 8. X129 (LKN) X129 Engine Harness to Body Harness |
| 9. X110 X110 Body Harness to Left Headlamp Harness |
| 10. J100 |
| 11. J131 |
| 12. X118 X118 Body Harness to Cooling Fan Harness |
| 13. X119 X119 Body Harness to Lower Grille Harness Harness (-VRI)X119 Body Harness to Lower Grille Harness (VRI) |
| 14. J103 |
| 15. J105 |
