Driver or Passenger Seat Head Restraint Replacement

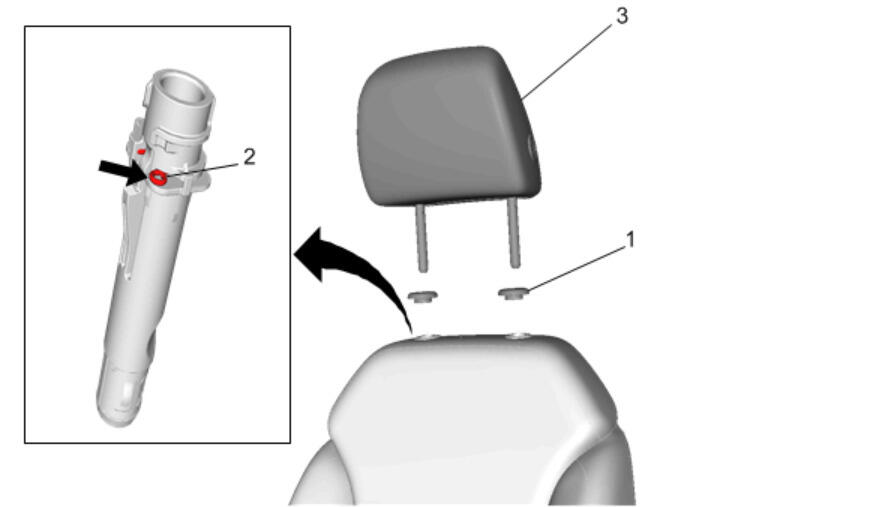

Fig 1: Driver or Passenger Seat Head Restraint

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver or Passenger Front Seat Head Restraint Guide Bezel (Qty: 2) Procedure Raise the headrest to gain access to the head restraint guide bezel. Twist the bezel counter clockwise and push the bezel upward on the head restraint adjuster rod.
2	Driver or Passenger Seat Head Restraint Clip (Qty: 2) Procedure Using a suitable pointed or flat bladed tool, push the metal clip rearward while pulling upward on the head restraint.
3	Driver or Passenger Seat Head Restraint

Callout

Component Name

Driver or Passenger Front Seat Head Restraint Guide Bezel (Qty: 2)

Procedure

Raise the headrest to gain access to the head restraint guide bezel.
Twist the bezel counter clockwise and push the bezel upward on the head restraint adjuster rod.

Driver or Passenger Seat Head Restraint Clip (Qty: 2)
Procedure
Using a suitable pointed or flat bladed tool, push the metal clip rearward while pulling upward on the head restraint.

Driver or Passenger Seat Head Restraint
