Instrument Panel Trim Plate Replacement (RPO IOA)

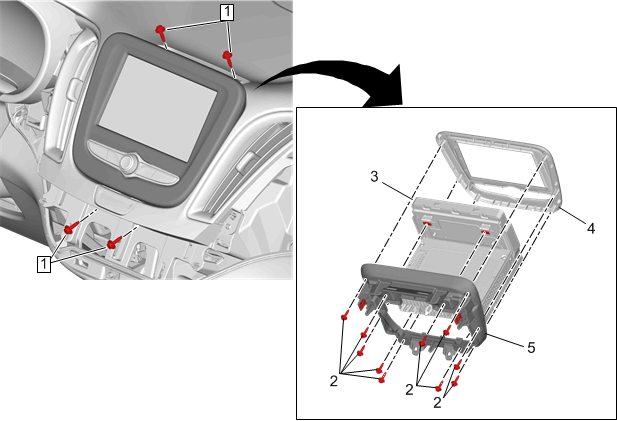

Fig 1: Instrument Panel Trim Plate (RPO IOA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Center Bolt Cover Replacement Heater and Air Conditioning User Interface Control Replacement (CJ2)Heater and Air Conditioning User Interface Control Replacement (C4P)
1	Instrument Panel Trim Plate Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Bolt (Qty: 4) Tighten 2.5 N.m (22 lb in)
3	Radio Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup procedures, if required.
4	Instrument Panel Accessory Center Trim Plate
5	Instrument Panel Trim Plate Procedure Release the retainers.
