Instrument Panel Knee Bolster Replacement

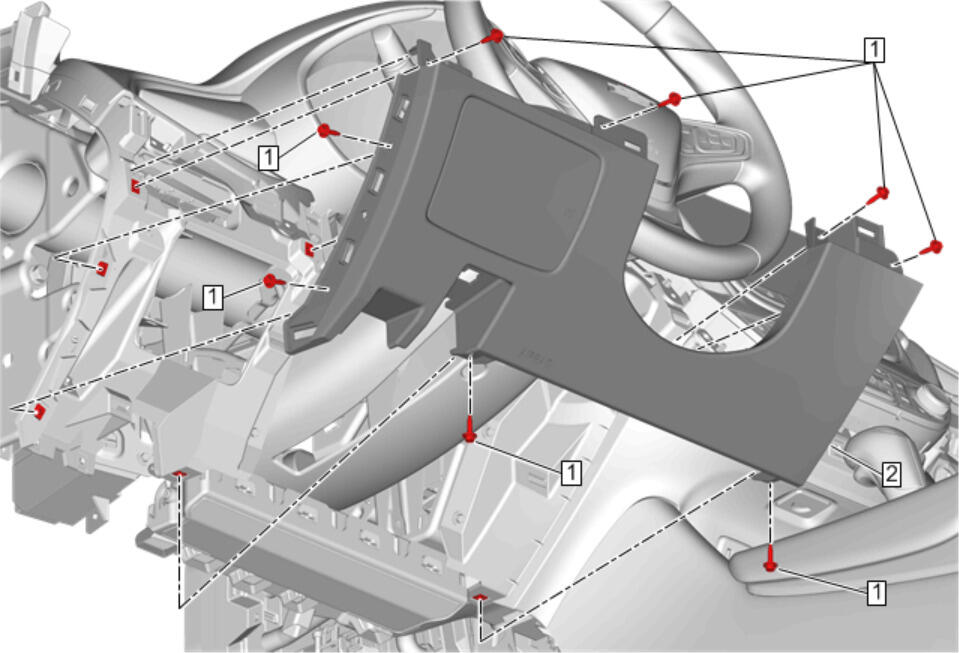

Fig 1: Instrument Panel Knee Bolster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Instrument Panel Trim Pad Replacement - Left Side Instrument Panel Trim Pad Replacement - Right Side
1	Instrument Panel Knee Bolster Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Knee Bolster Procedure Push down on hood handle to release, then slide out of the knee bolster. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Instrument Panel Knee Bolster Bolt (Qty: 8)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Knee Bolster

Procedure
