Rear Bumper Fascia Replacement (Dual Tail Pipe)

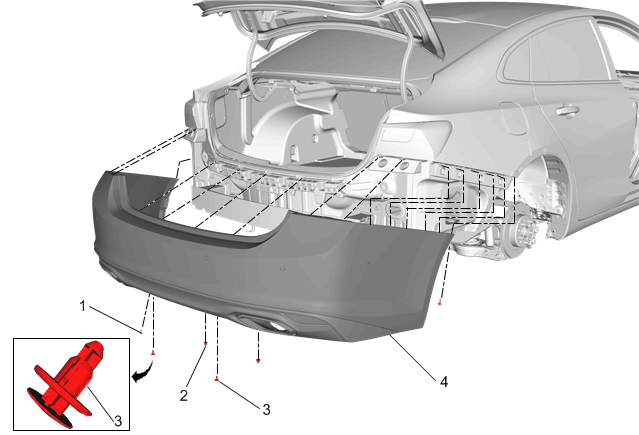

Fig 1: Rear Bumper Fascia (Dual Tail Pipe)
GM4289066Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Rear Wheelhouse Liner Replacement
1 Rear Bumper Fascia Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Fascia Nut (Qty: 2)
Tighten
2.5 N.m (22 lb in)
3 Rear Bumper Fascia Retainer (Qty: 2)
4 Rear Bumper Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
