Rear Seat Back Cushion Frame Replacement

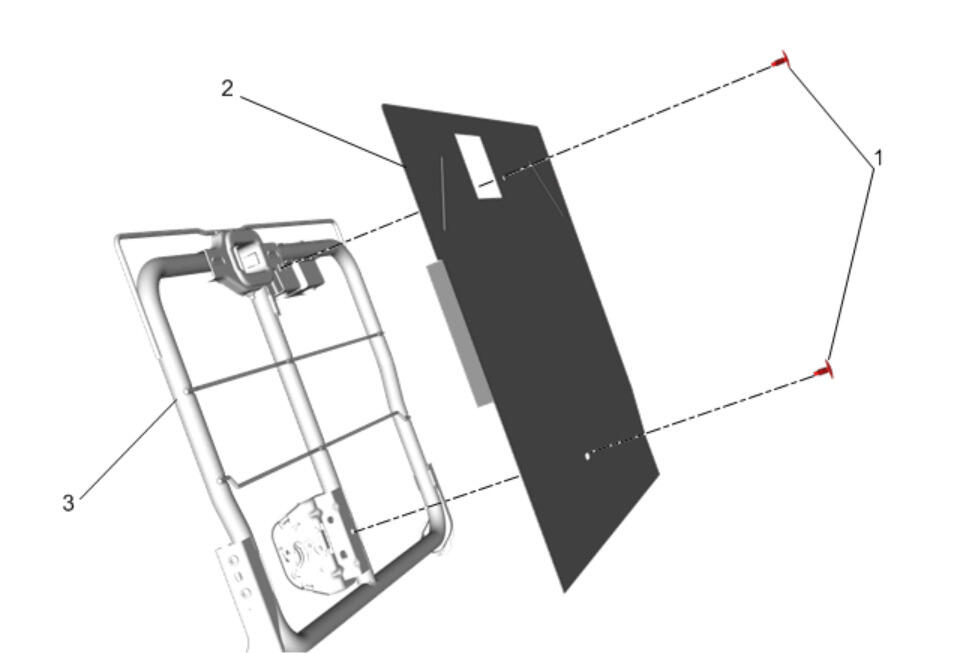

Fig 1: Rear Seat Back Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Seat Back Cushion Cover and Pad Replacement (40%) Rear Seat Back Cushion Cover and Pad Replacement (60%)
1	Rear Seat Back Cushion Panel Retainer (Qty: 2)
2	Rear Seat Back Cushion Panel
3	Rear Seat Back Cushion Frame Procedure  Transfer components as necessary.
