Front Seat Cushion Pad Support Replacement

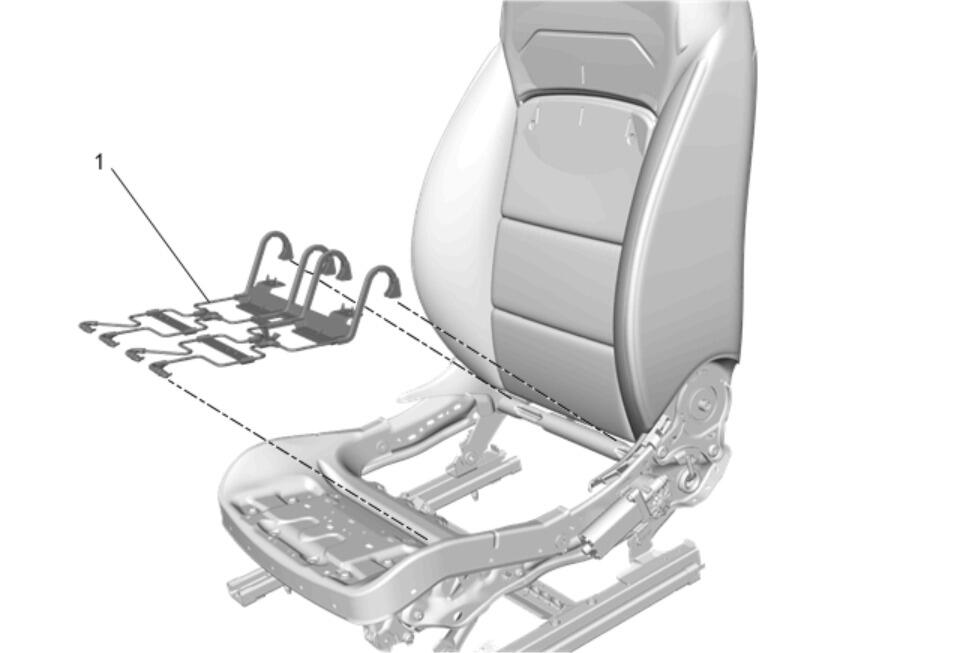

Fig 1: Front Seat Cushion Pad Support
GM4205683Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Procedure Front Seat Cushion Cover and Pad Replacement
1 Front Seat Cushion Pad Support
