Driver or Passenger Seat Back Cushion Frame Replacement

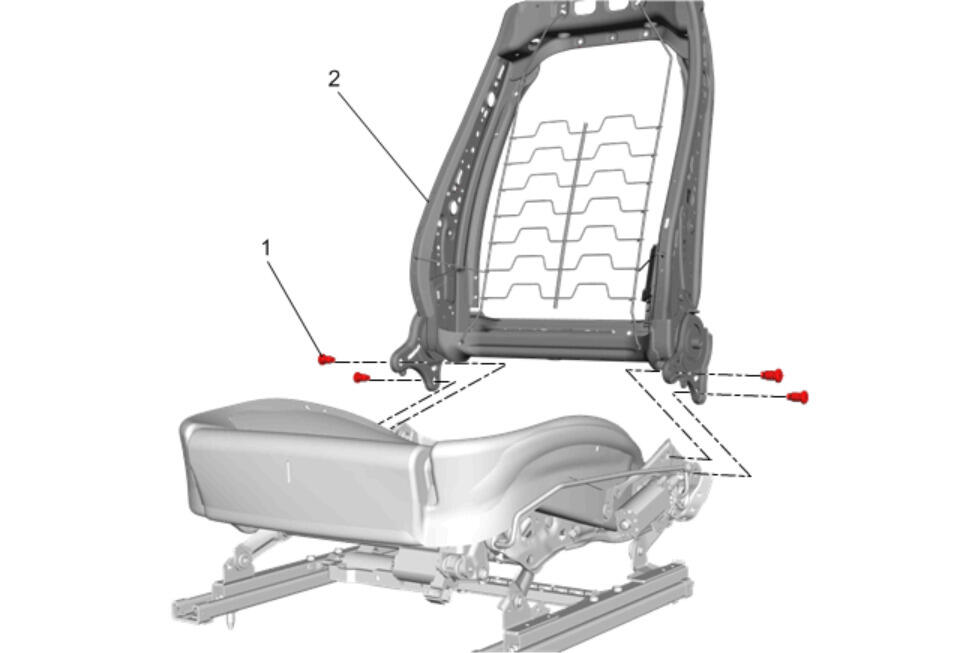

Fig 1: Driver or Passenger Seat Back Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Procedure Driver or Passenger Seat Back Cover and Pad Replacement
1	Driver or Passenger Seat Back Frame Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Driver or Passenger Seat Back Cushion Frame Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

WARNING:

Driver or Passenger Seat Back Frame Fastener (Qty: 4)

CAUTION:

Tighten
35 N.m (26 lb ft)

Driver or Passenger Seat Back Cushion Frame

Procedure
