Instrument Cluster Wiring Schematics: Indicators

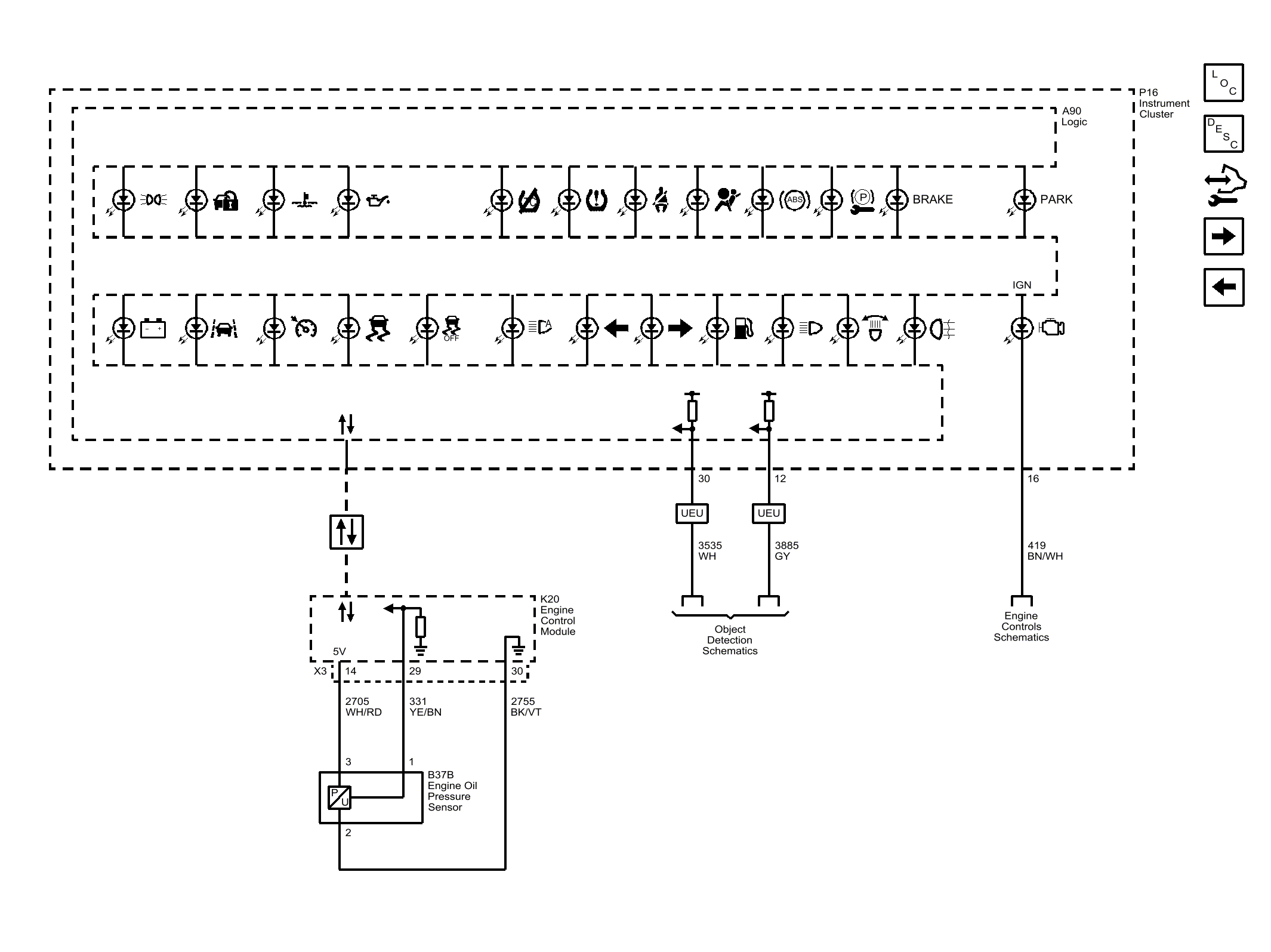

Fig 1: Indicators

GM4244653

Courtesy of GENERAL MOTORS COMPANY
