S30 Headlamp Switch
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

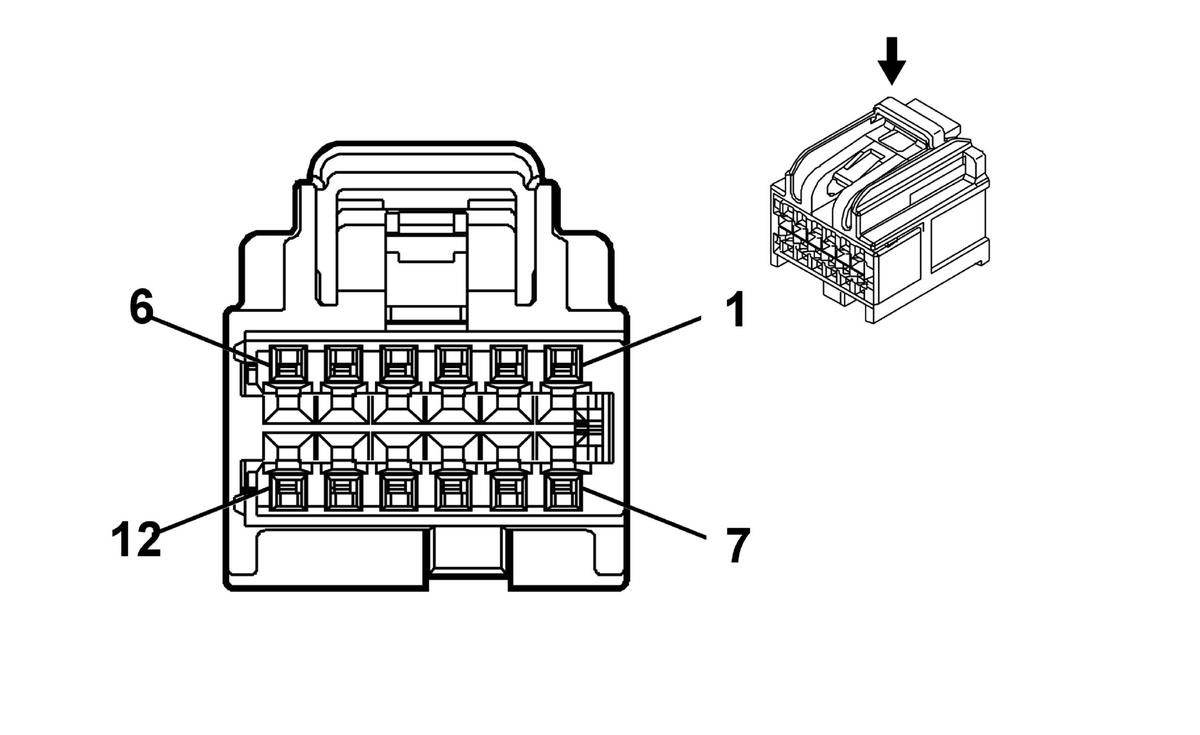

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13782625
- Service Connector: 19301730
- Description: 12-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13587581 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13587581 |
J-35616-64B (LT BU) |
J-38616-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
7556 |
Lighting Control Switch Reference |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.13 |
GY |
13 |
Headlamp Switch Park Lamp Signal |
I |
- |
| 4 |
0.13 |
WH |
103 |
Headlamp Switch On Signal |
I |
- |
| 5 |
0.13 |
L-GN |
306 |
Headlamp Switch Headlamps Off Signal Control |
I |
- |
| 6 |
0.35 |
BK |
1650 |
Ground |
II |
- |
| 7 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
II |
- |
| 8 - 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.13 |
WH |
7555 |
Lighting Control Switch Signal |
I |
- |
