M96 Active Grille Air Shutter Actuator (VRI)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

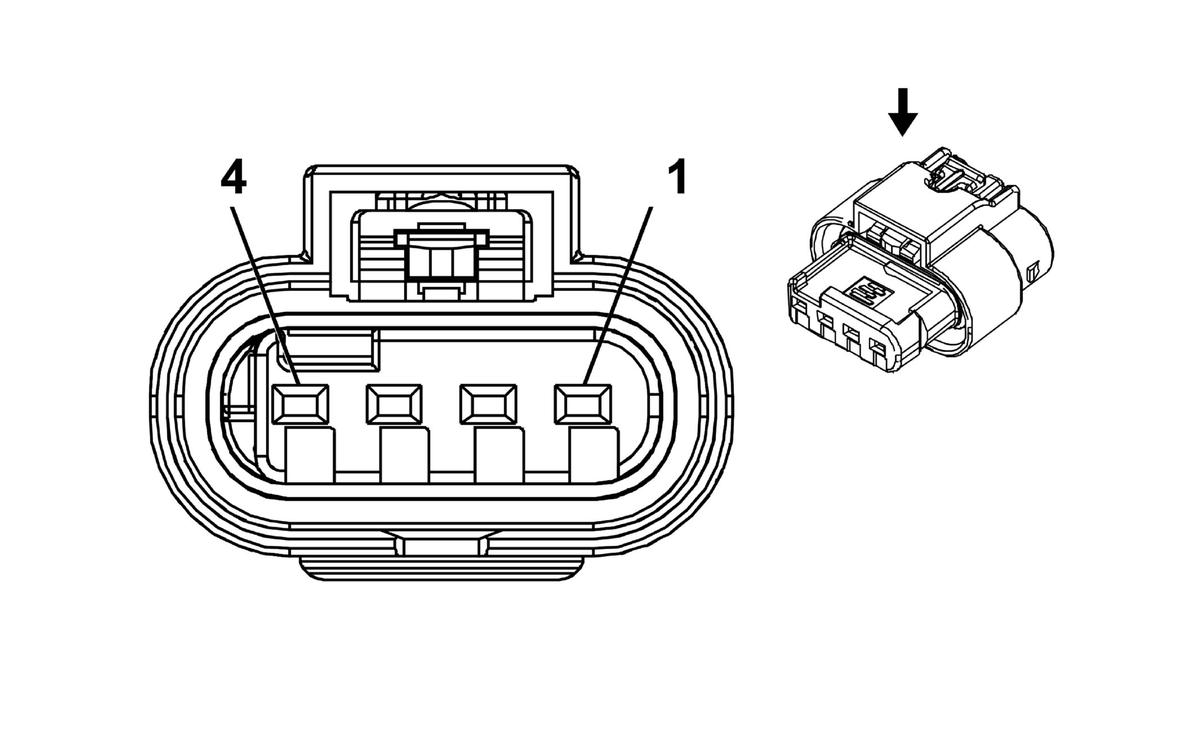

Connector Part Information
- Harness Type: Ambient Air Temp Sensor
- OEM Connector: 13817132
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY/BK |
3437 |
Shutter Valve Solenoid Control |
I |
- |
| 2 |
0.35 |
BK |
1150 |
Ground |
I |
- |
| 3 |
0.35 |
VT/BK |
339 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
