E5AB Tail/Stop Lamp - Right (without 1LZ)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

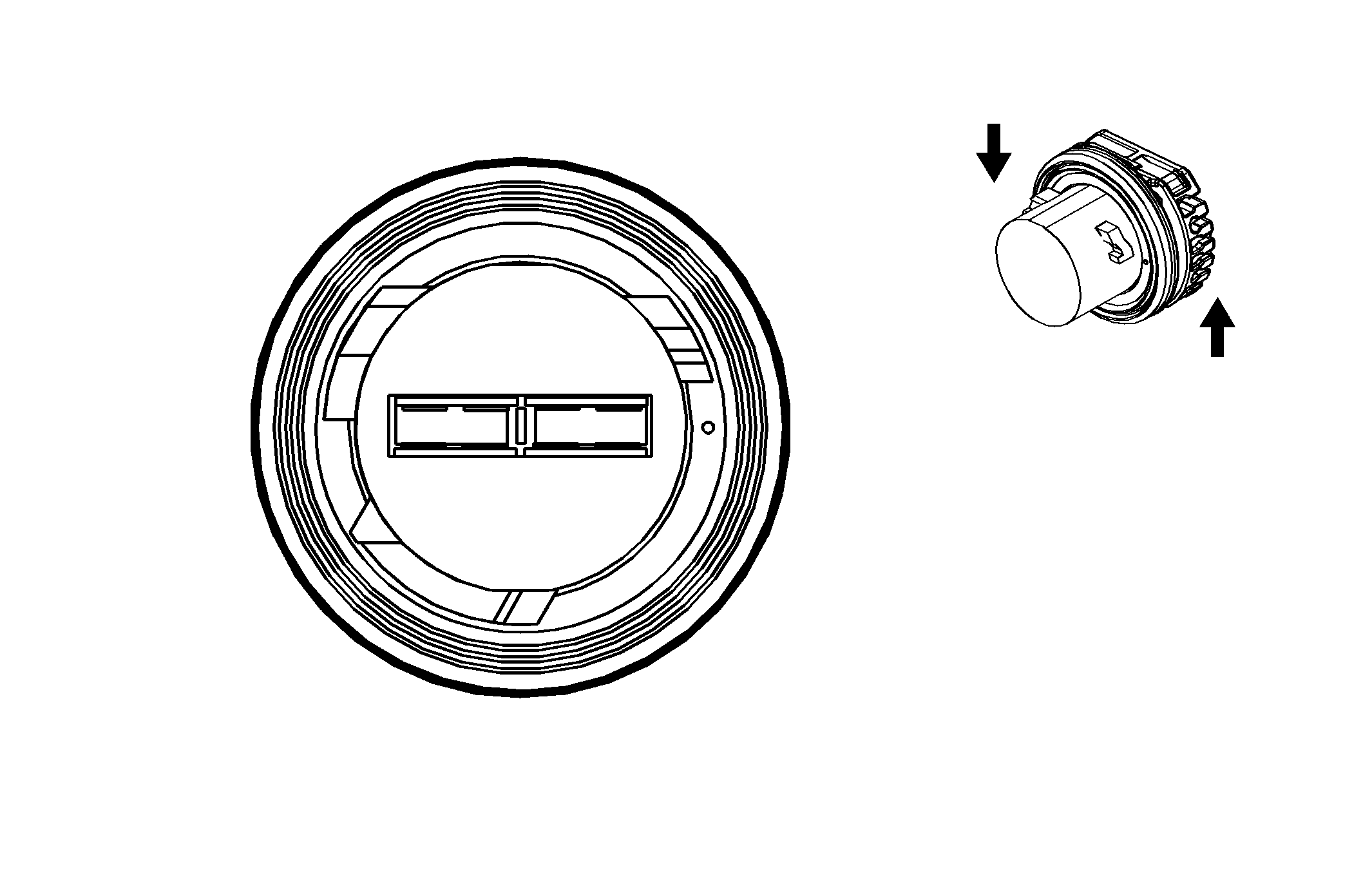

Connector Part Information
- Harness Type: Tail Lamp - Right
- OEM Connector: 0006903
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Lampsocket (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| - |
0.75 |
L-BU |
7541 |
Right Rear Stop Lamp Supply Voltage |
I |
- |
| - |
0.75 |
BK |
550 |
Ground |
I |
- |
