E37EL Dome/Reading Lamps - Left Front
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

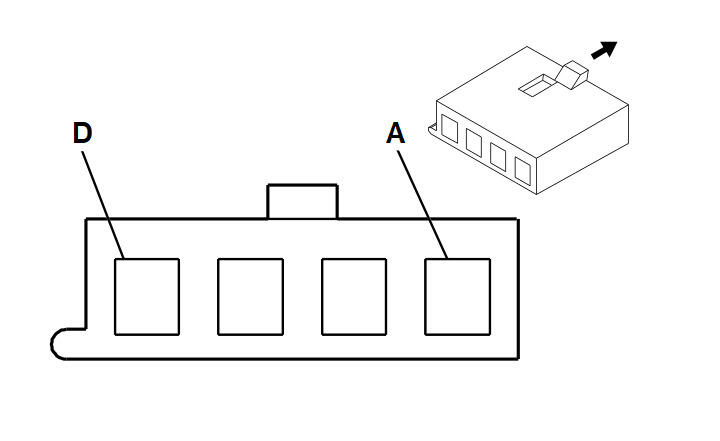

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 12092162
- Service Connector: 15306021
- Description: 4-Way F 150 Metri-Pack Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.35 |
WH/BN |
6815 |
Inadvertent Power Control |
I |
- |
| B |
0.35 |
BK |
2550 |
Ground |
I |
- |
| C |
0.35 |
GY |
157 |
Interior Lamp Control |
I |
- |
| D |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
