E29LF Fog Lamp - Left Front (T3U)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

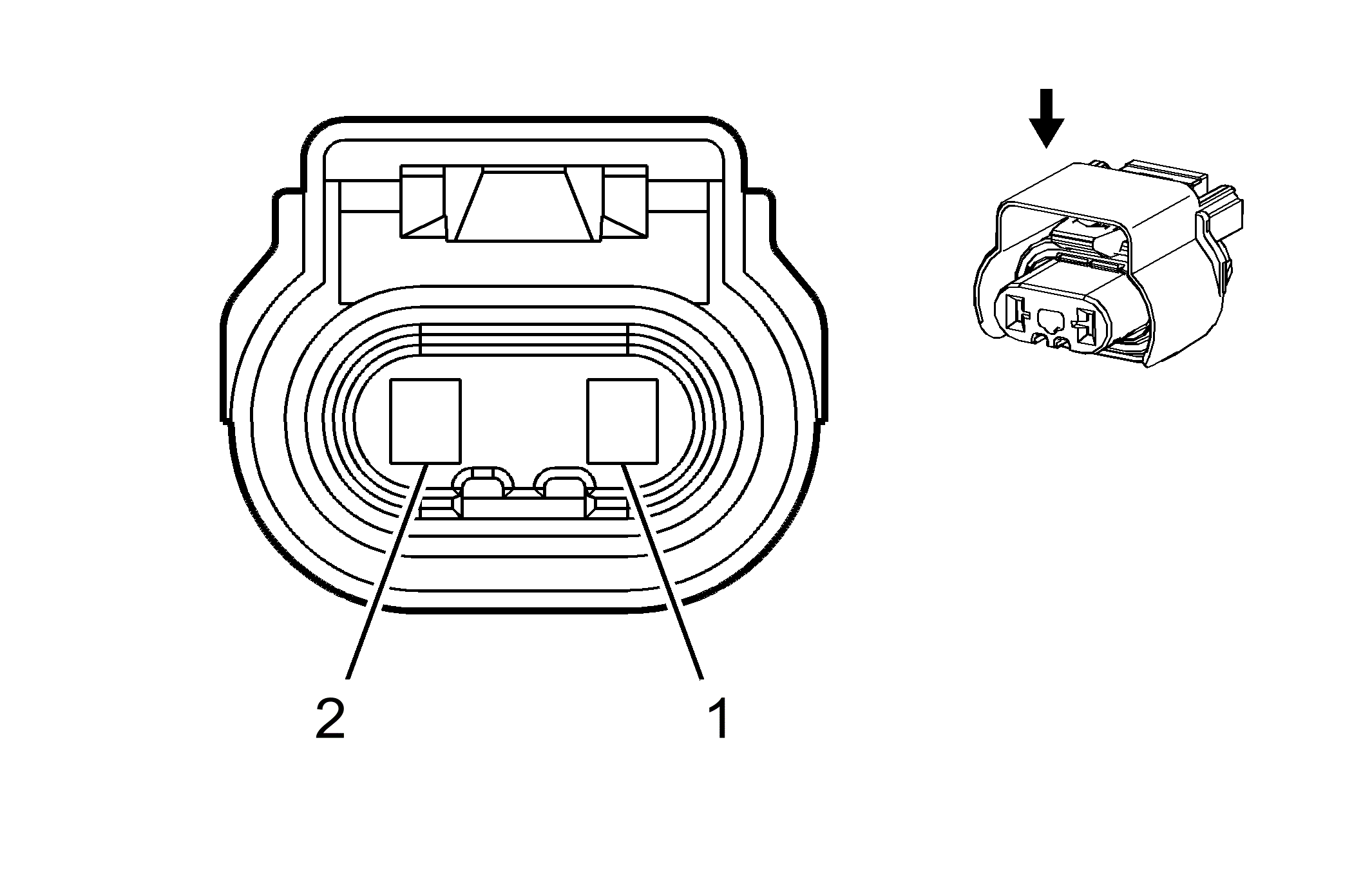

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 15336116
- Service Connector: 13580104
- Description: 2-Way F 280 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/VT |
2234 |
Front Fog Lamp Control |
I |
- |
| 2 |
0.5 |
BK |
1150 |
Ground |
I |
- |
