B52B Heated Oxygen Sensor 2
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
|
|

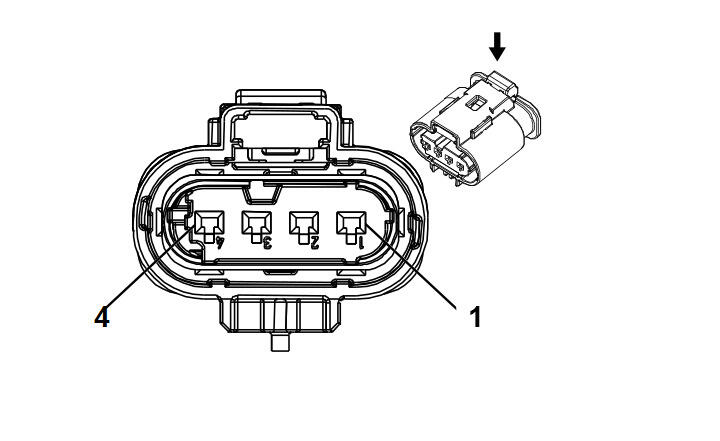

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13815348
- Service Connector: 13587298
- Description: 4-Way F 1.2 Multilock Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/WH |
3122 |
Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 2 |
I |
- |
| 2 |
0.5 |
VT/D-BU |
5294 |
Powertrain Main Relay Fused Supply 5 |
I |
- |
| 3 |
0.5 |
WH/YE |
3121 |
Heated Oxygen Sensor Low Signal Bank 1 Sensor 2 |
I |
- |
| 4 |
0.5 |
VT/D-BU |
3120 |
Heated Oxygen Sensor High Signal Bank 1 Sensor 2 |
I |
- |
