Indicators and Engine Oil Pressure Control

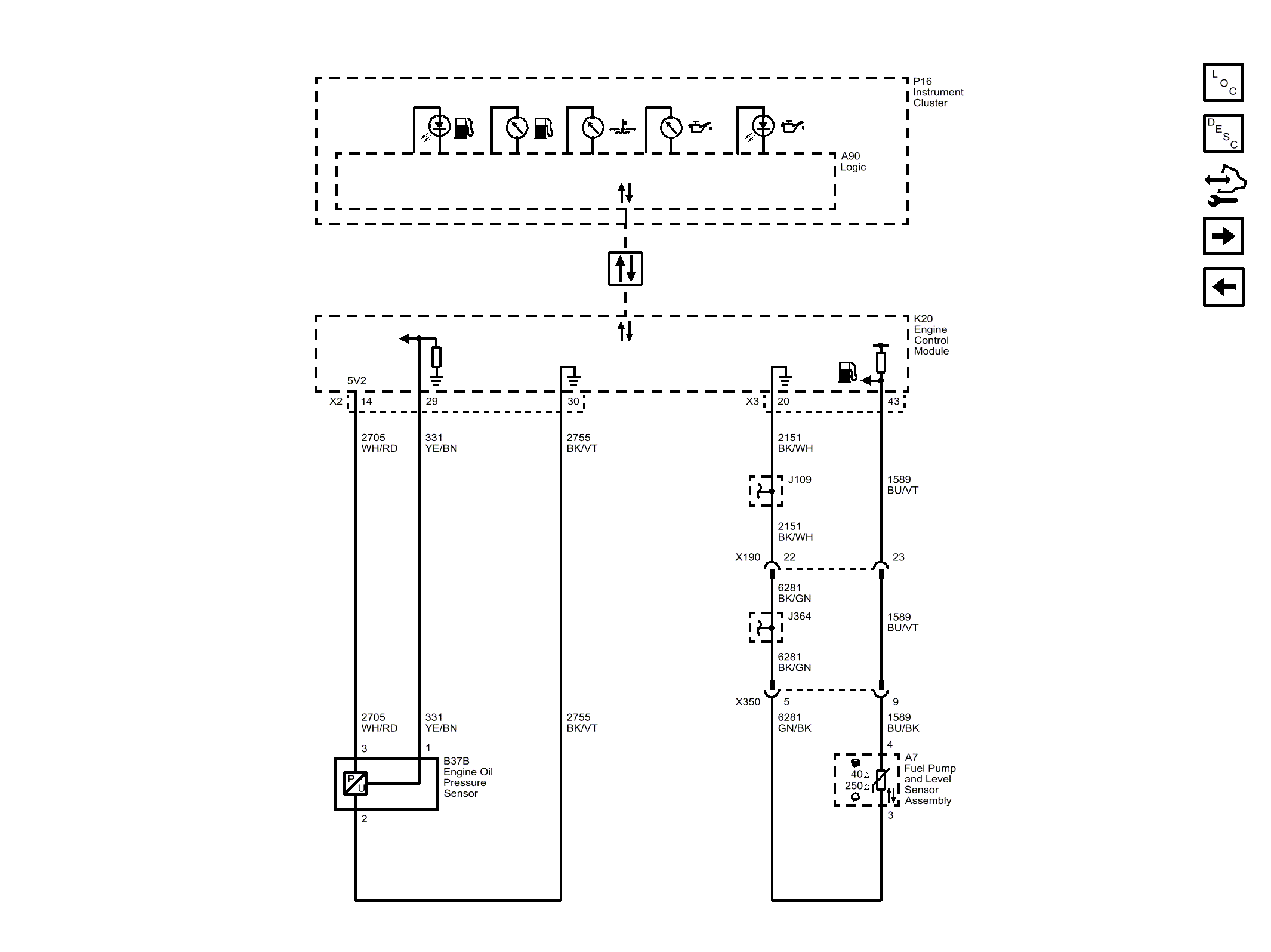

Fig 1: Indicators and Engine Oil Pressure Control

GM4251545

Courtesy of GENERAL MOTORS COMPANY
