Rear of Driver Seat Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

Items
1. Q51D Seat Lumbar Support Valve Assembly - Driver (APG) Q51D Seat Lumbar Support Valve Assembly - Driver (APG)
2. M56D Seat Recline Motor - Driver (AG1) M56D Seat Recline Motor - Driver
3. A14D Seat Lumbar Support Pump - Driver (APG) A14D Seat Lumbar Support Pump - Driver (APG)
4. F106D Seat Side Air Bag - Driver F106D Seat Air Bag - Driver
5. S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver (A6A)S64D Seat Adjuster Switch - Driver (AG1)
6. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back (KA1)
7. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion (KA1)
8. S65D Seat Lumbar Support Switch - Driver (APG) S65D Seat Lumbar Support Switch - Driver (APG)
9. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
10.. M55D Seat Rear Vertical Motor - Driver (AG1) M55D Seat Rear Vertical Motor - Driver
11. K29F Seat Heating Control Module - Front (KA1) K29F Seat Heating Control Module - Front X1 (KA1 without A45)K29F Seat Heating Control Module - Front X2 (KA1 without A45)K29F Seat Heating Control Module - Front X3 (KA1 without A45)
12. M51D Seat Horizontal Motor - Driver (AG1) M51D Seat Horizontal Motor - Driver
13. M50D Seat Front Vertical Motor - Driver (AG1) M50D Seat Front Vertical Motor - Driver
14. B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver

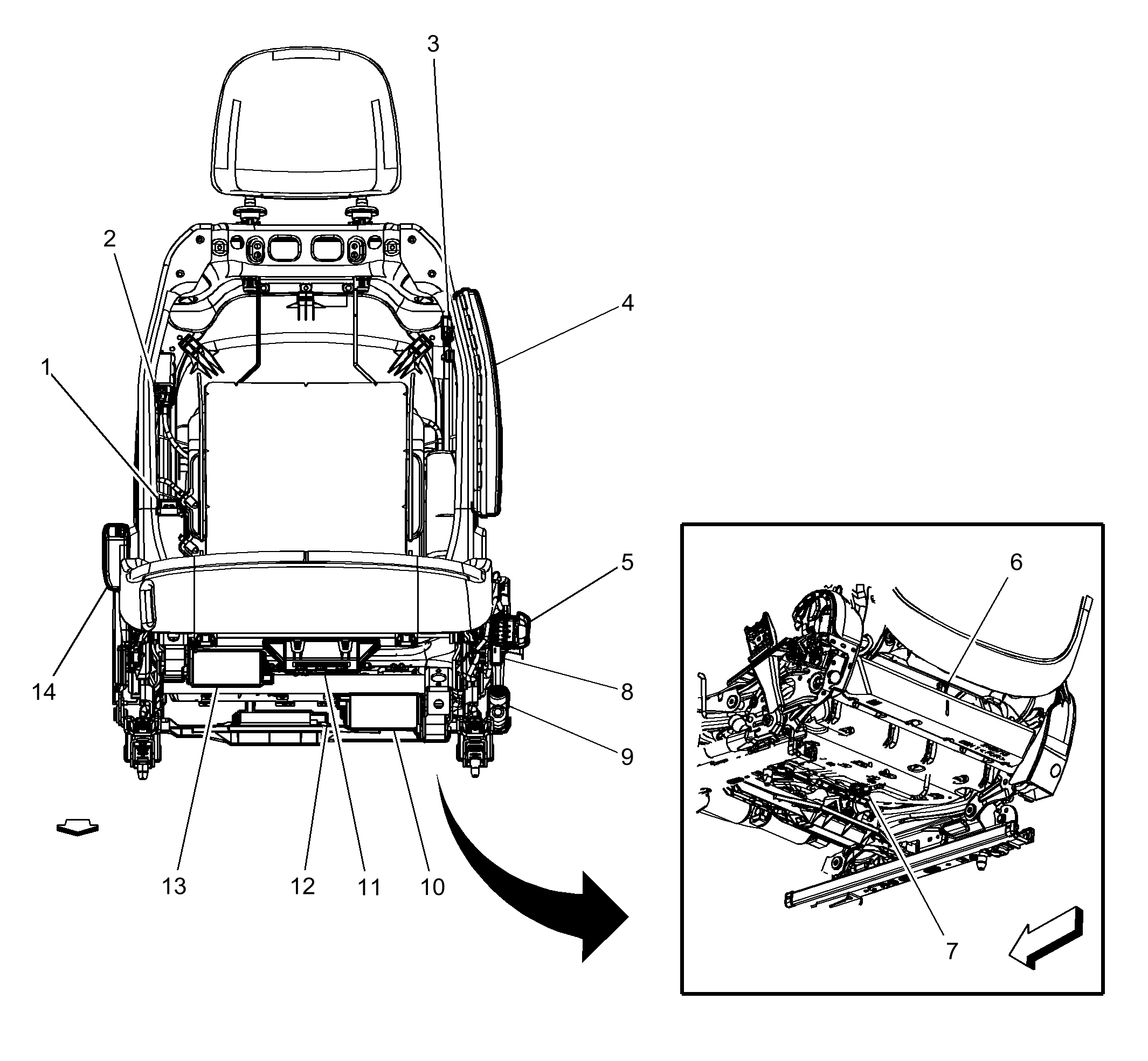

Fig 1: Rear of Driver Seat Components

Courtesy of GENERAL MOTORS COMPANY
