Passenger Seat Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

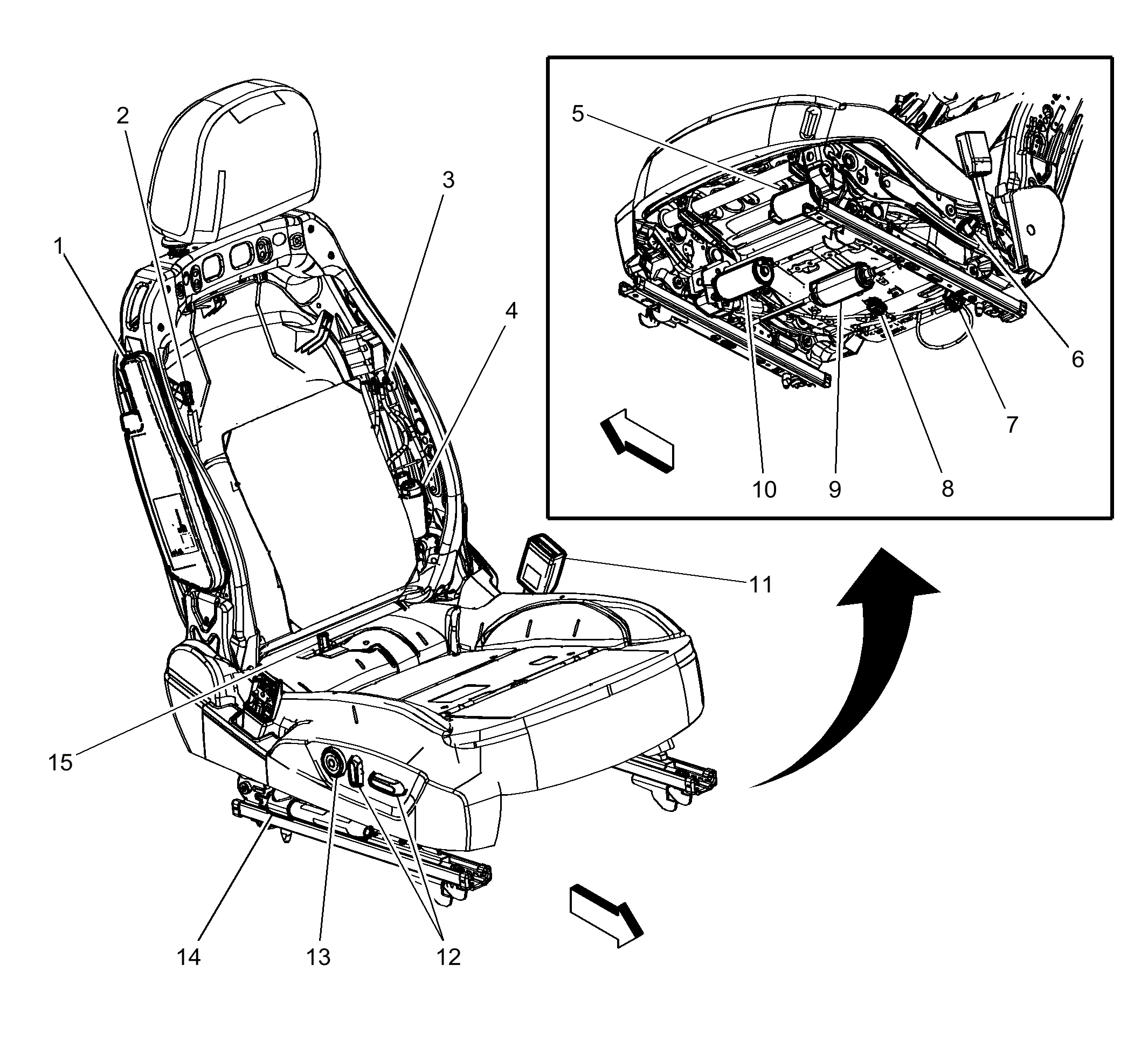

Passenger Seat Components
| Items |
|---|
| 1. F106P Seat Side Air Bag - Passenger F106P Seat Air Bag - Passenger |
| 2. A14P Seat Lumbar Support Pump - Passenger (APH) A14P Seat Lumbar Support Pump - Passenger (APH) |
| 3. M56P Seat Recline Motor - Passenger (AG2) M56P Seat Recline Motor - Passenger (AG2) |
| 4. Q51P Seat Lumbar Support Valve Assembly - Passenger (APH) Q51P Seat Lumbar Support Valve Assembly - Passenger (APH) |
| 5. M55P Seat Rear Vertical Motor - Passenger (AG2) M55P Seat Rear Vertical Motor - Passenger (AG2) |
| 6. B88P Seat Belt Switch - Passenger |
| 7. B60 Passenger Presence Sensor |
| 8. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 9. M51P Seat Horizontal Motor - Passenger (AG2) M51P Seat Horizontal Motor - Passenger (AG2) |
| 10. M50P Seat Front Vertical Motor - Passenger (AG2) M50P Seat Front Vertical Motor - Passenger (AG2) |
| 11. B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger |
| 12. S64P Seat Adjuster Switch - Passenger (AG2 or A6C) S64P Seat Adjuster Switch - Passenger X2 (A6C)S64P Seat Adjuster Switch - Passenger X1 (AG2) |
| 13. S65P Seat Lumbar Support Switch - Passenger (APH) S65P Seat Lumbar Support Switch - Passenger (APH) |
| 14. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
| 15. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
