Left Front of Passenger Compartment

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Left Front of Passenger Compartment

Items
1. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
2. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA)P19H Speaker - Left Front Tweeter
3. K9 Body Control Module K9 Body Control Module X1
4. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2
5. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver

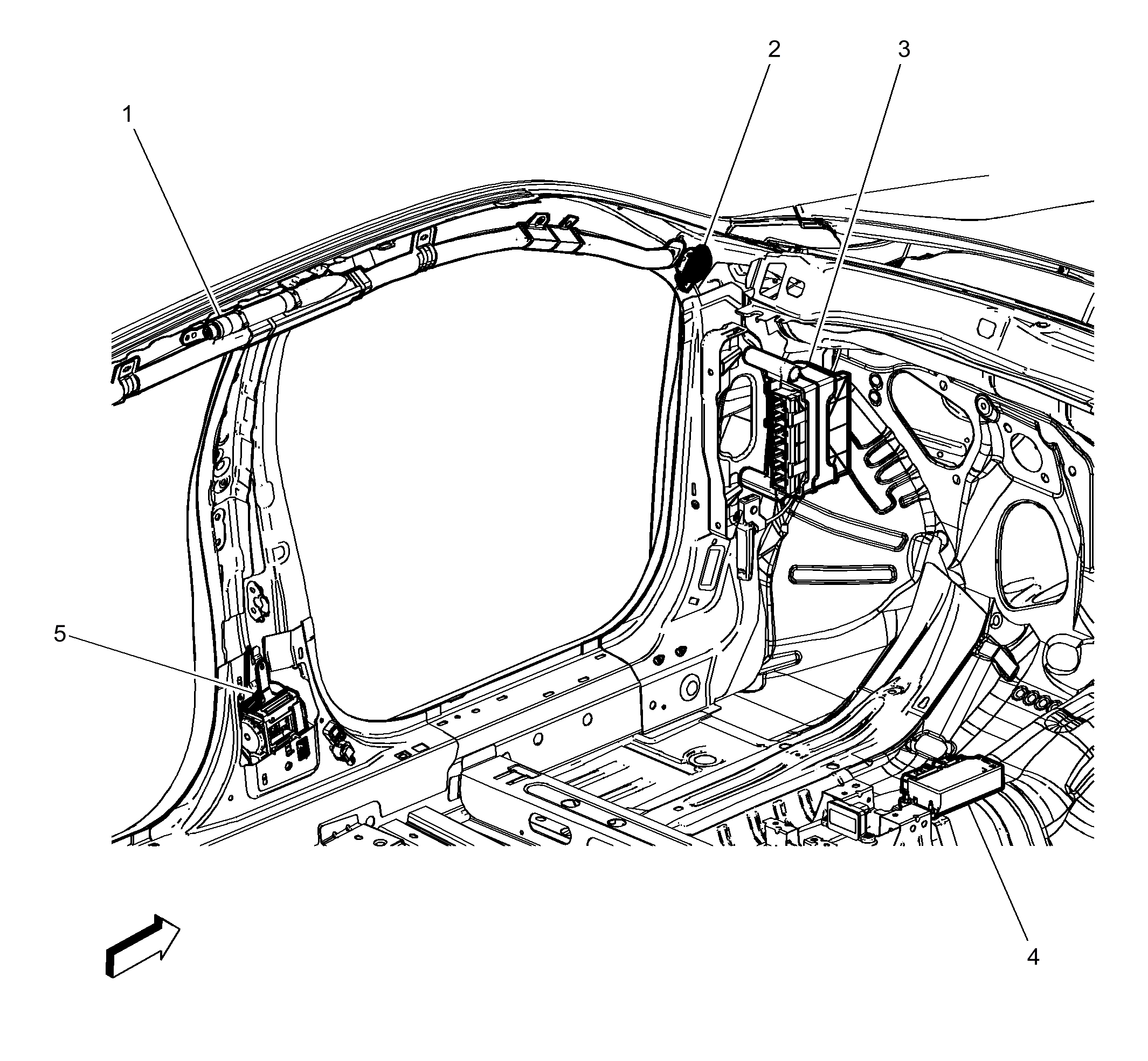

Fig 1: Left Front of Passenger Compartment
GM3708316Courtesy of GENERAL MOTORS COMPANY
