Bottom of Passenger Seat Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

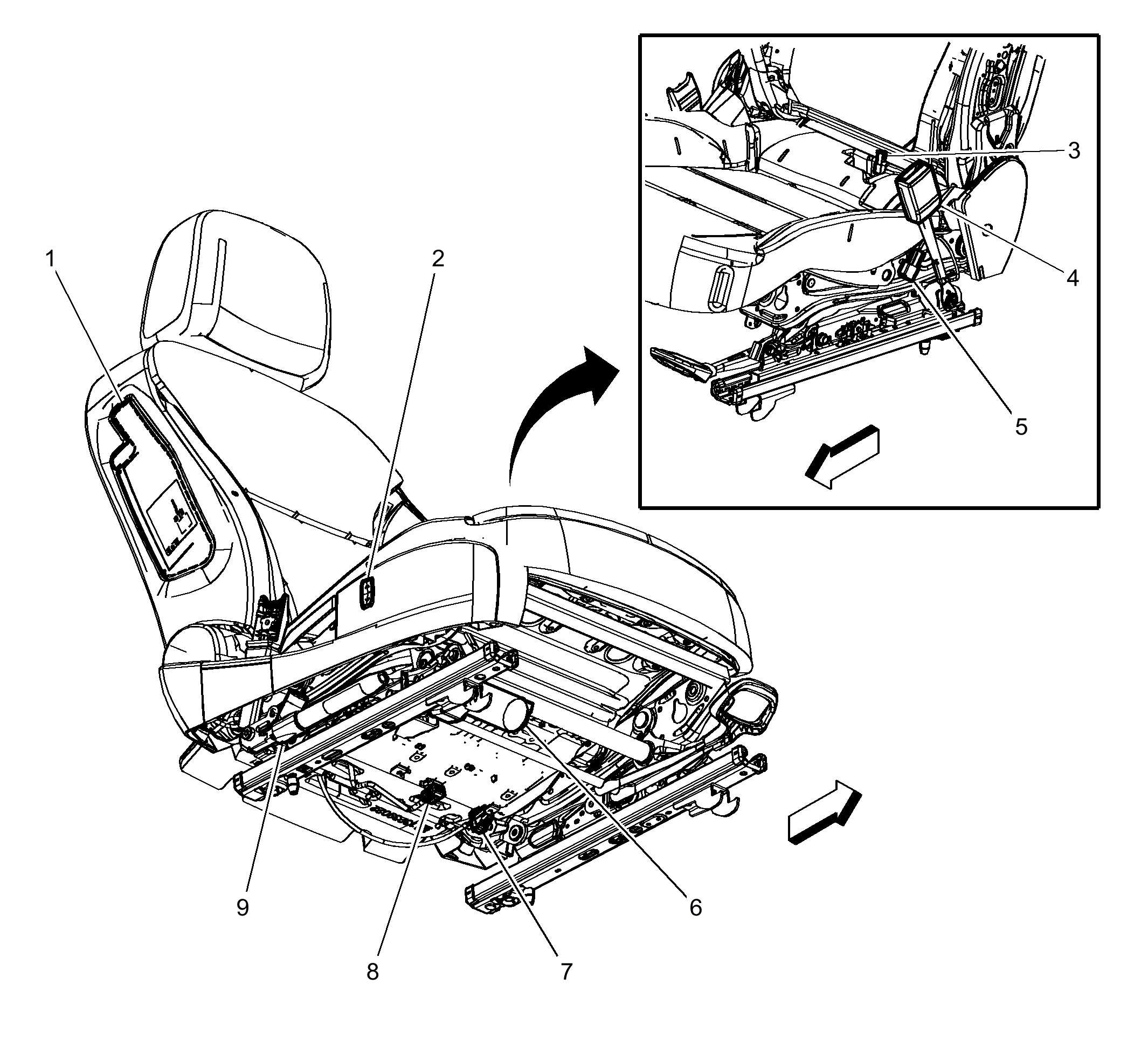

Bottom of Passenger Seat Components
| Items |
|---|
| 1. F106P Seat Side Air Bag - Passenger F106P Seat Air Bag - Passenger |
| 2. S64P Seat Adjuster Switch - Passenger (AG2 or A6C) S64P Seat Adjuster Switch - Passenger X2 (A6C)S64P Seat Adjuster Switch - Passenger X1 (AG2) |
| 3. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 4. B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger |
| 5. B88P Seat Belt Switch - Passenger |
| 6. M50P Seat Front Vertical Motor - Passenger (AG2) M50P Seat Front Vertical Motor - Passenger (AG2) |
| 7. B60 Passenger Presence Sensor |
| 8. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 9. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
