G102, G109

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
G102, G109

Items
1. G102
2. G109

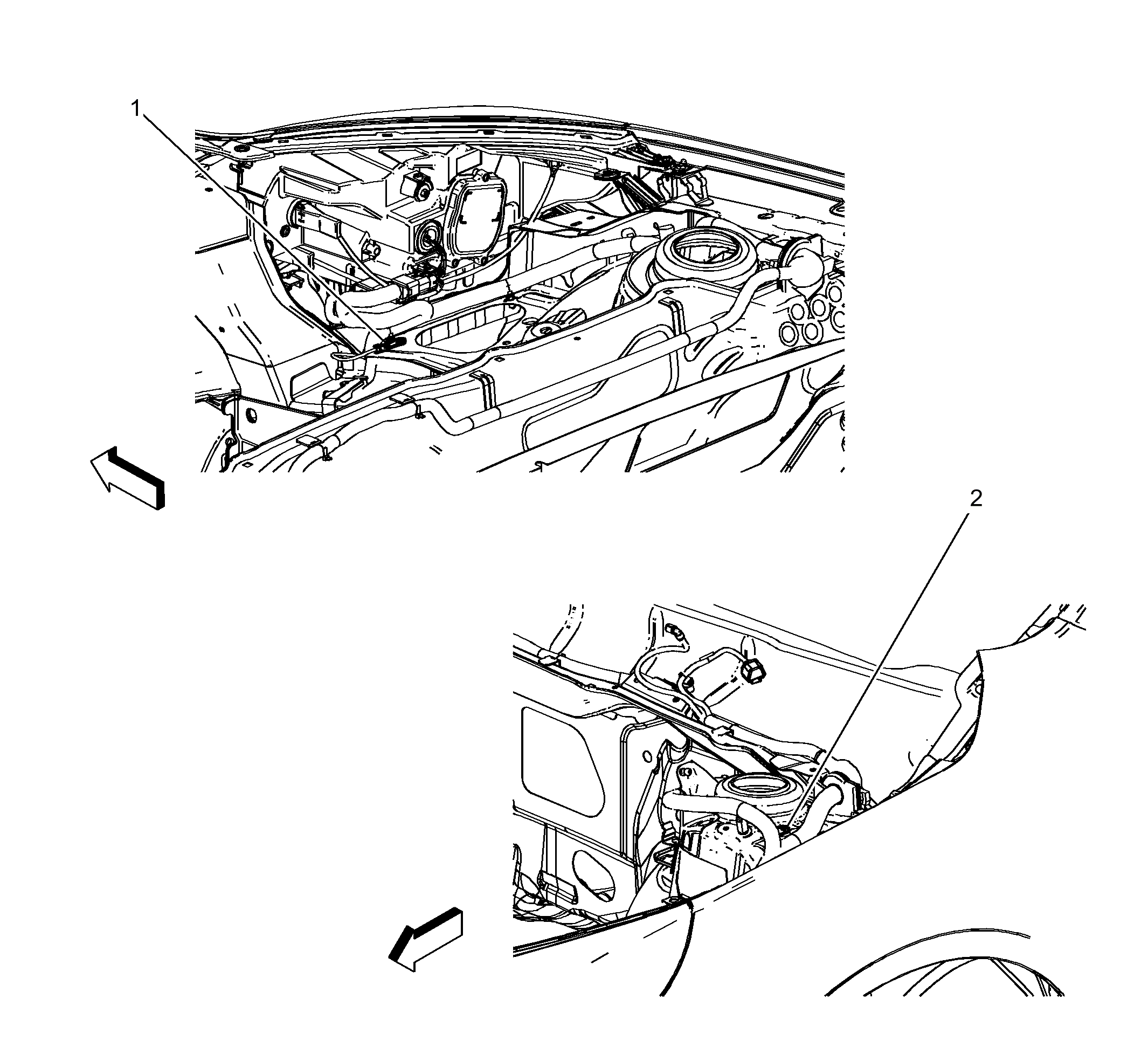

Fig 1: G102, G109
GM3708237Courtesy of GENERAL MOTORS COMPANY
