G101, G106, G108 and G110

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
G101, G106, G108 and G110

Items
1. G108
2. G101
3. G106
4. G110

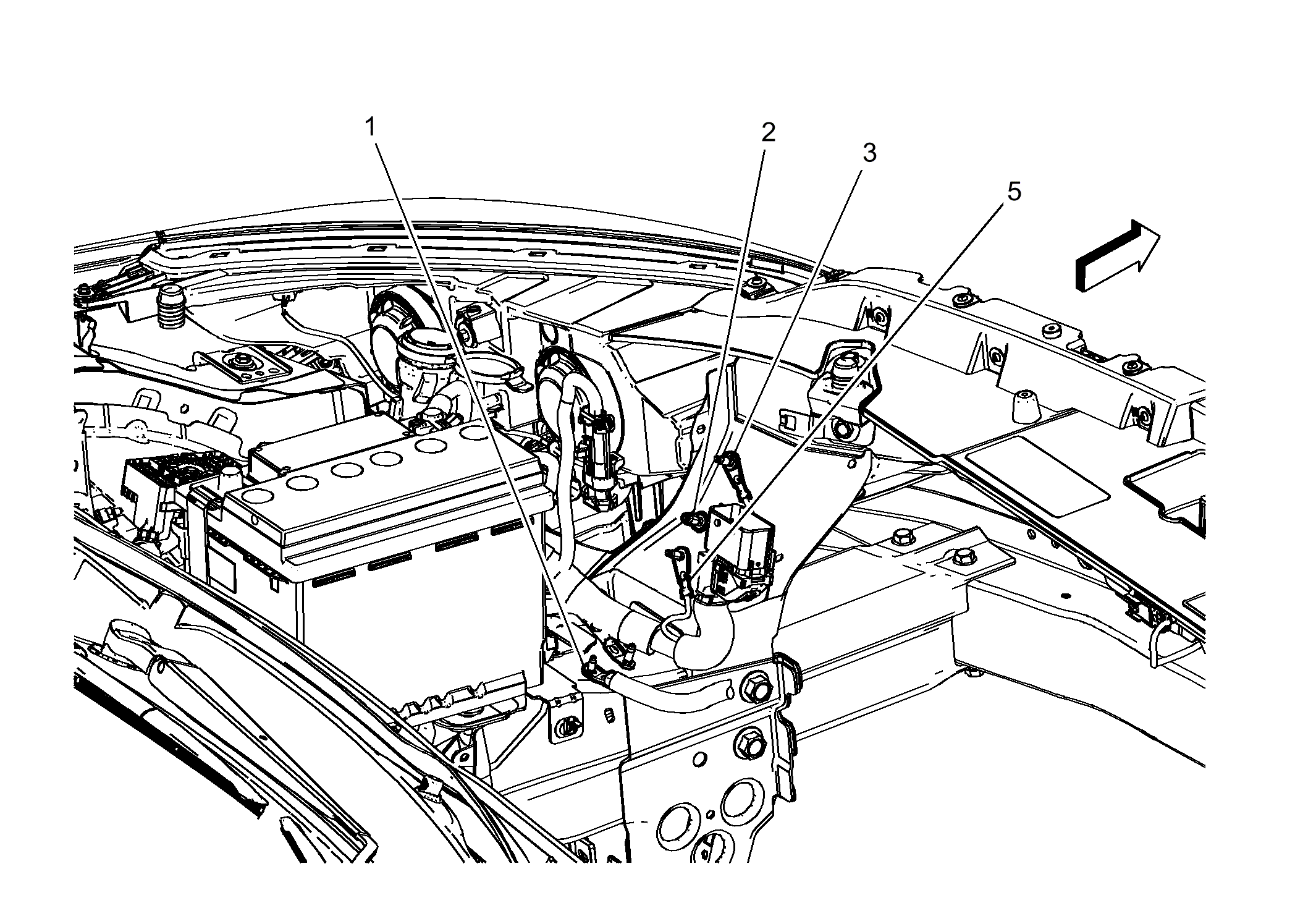

Fig 1: G101, G106, G108 and G110
GM4218717Courtesy of GENERAL MOTORS COMPANY
