X300 Floor Console Harness to Instrument Panel Harness

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

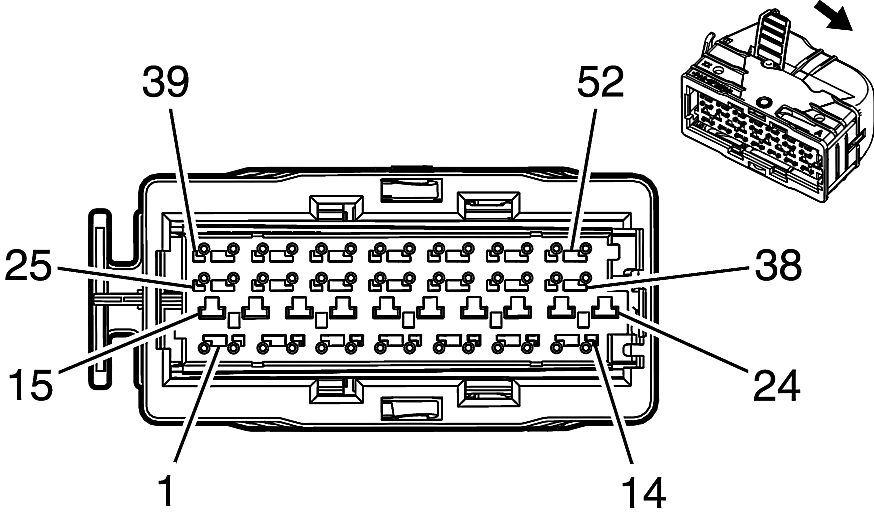

GM2180247

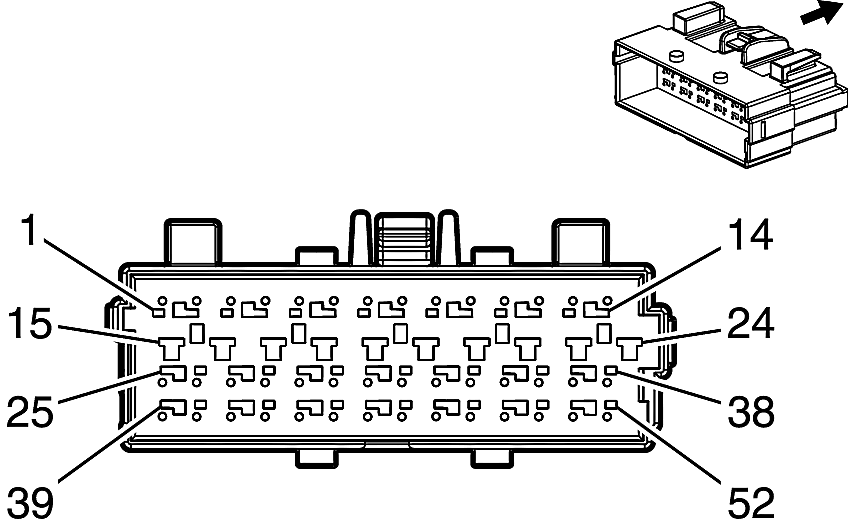

GM2717166
Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 15397356
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 52-Way F 0.8, 2.8 Ducon Series (BK)
 Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 15396761
  • Service Connector: 13574783
  • Description: 52-Way M 0.8, 2.8 Ducon Series (GN)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-5 (PU) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-64B (LT BU) No Tool Required Not Required Not Required Not Required Not Required
III 13575728 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
IV 13575729 J-35616-5 (PU) J-38125-11A 12147451 Delphi 24 2 4
V 13575757 J-35616-5 (PU) J-38125-11A Not Available Not Available Not Available Not Available
VI 13575768 J-35616-65B (LT BU) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - 12 - - - - - Not Occupied 1 - 12 - - - - -
13 0.35 WH/YE 6646 II - Keyless Antenna Signal 7 13 - - - - -
14 0.35 BK/D-GN 6649 II - Keyless Antenna Low Reference 7 14 - - - - -
15 - 16 - - - - - Not Occupied 15 - 16 - - - - -
17 1 VT 801 I - Retained Accessory Power Fuse Control 17 1 L-GN/WH 801 IV -
18 - - - - - Not Occupied 18 - - - - -
19 1 BK 1850 I - Ground 19 1 BK 1850 IV -
20 - - - - - Not Occupied 20 - - - - -
21 0.5 GY/VT 755 I - RAP Relay Coil Control 21 0.5 GY/VT 755 IV -
22 2.5 RD/YE 740 I - Battery Positive Voltage 22 2.5 RD/YE 740 III -
23 - - - - - Not Occupied 23 - - - - -
24 4 BK 1550 I - Ground 24 4 BK 1550 V -
25 - 31 - - - - - Not Occupied 25 - 31 - - - - -
32 - - - - - LED Ambient Lighting Control 1 32 0.35 WH/YE 7557 VI -
33 - 34 - - - - - Not Occupied 33 - 34 - - - - -
35 0.35 GY 3276 II - Vehicle Anti-Theft System Immobilizer Control 35 - - - - -
36 0.35 L-GN/VT 7533 II - Local Interconnect Network Serial Data Bus 11 36 - - - - -
37 0.35 D-GN 3277 II - Vehicle Anti-Theft System Immobilizer Low Reference 37 - - - - -
38 - 42 - - - - - Not Occupied 38 - 42 - - - - -
43 0.35 D-BU 2060 II - Auxiliary Detection Signal 43 0.35 D-BU 2060 VI -
44 0.35 BARE 5842 II - Auxiliary Audio Screen 2 44 0.35 BARE 5842 VI -
45 0.35 VT 5843 II - Auxiliary Audio Common Signal 45 0.35 VT 5843 VI -
46 0.35 GY 5839 II - Left Auxiliary Audio Signal 2 46 0.35 GY 5839 VI -
47 0.35 D-GN 5841 II - Right Auxiliary Audio Signal 2 47 0.35 L-GN 5841 VI -
48 0.35 BK 1650 II - Ground 48 0.35 BK 1650 VI -
49 - 50 - - - - - Not Occupied 49 - 50 - - - - -
51 0.35 L-GN/D-BU 6133 II - Local Interconnect Network Serial Data Bus 2 51 0.35 L-GN/D-BU 6133 VI -
52 - - - - - Not Occupied 52 - - - - -
