Left Front of Engine Compartment Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Left Front of Engine Compartment Components

Items
1. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2. P13 Horn Assembly P13 Horn Assembly

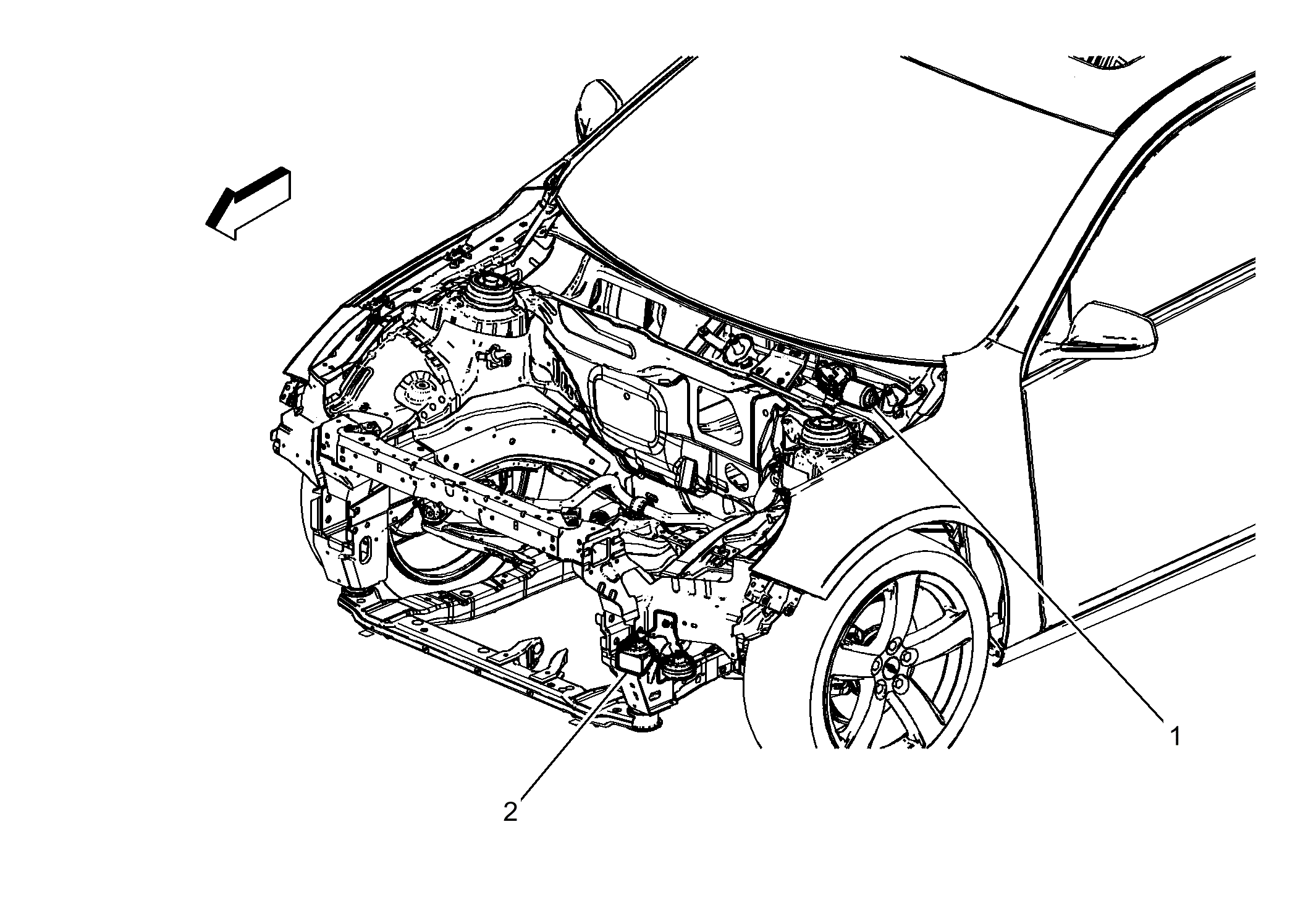

Fig 1: Left Front of Engine Compartment Components
GM3708529Courtesy of GENERAL MOTORS COMPANY
