Cooling Fan Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Cooling Fan Components

Items
1. G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
2. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3. G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right

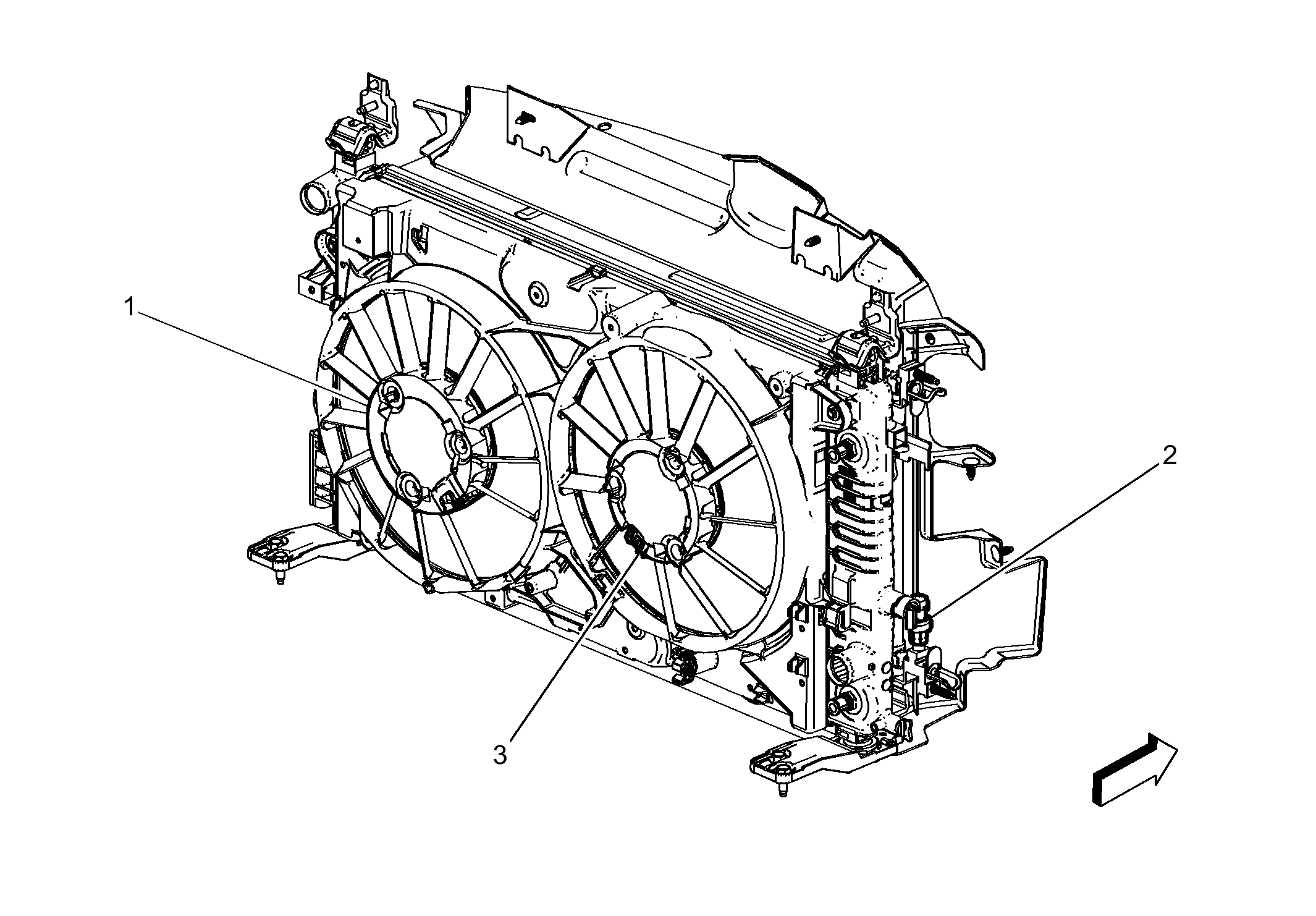

Fig 1: Cooling Fan Components
GM3708518Courtesy of GENERAL MOTORS COMPANY
