X900 Rear Compartment Lid Harness to Body Harness

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

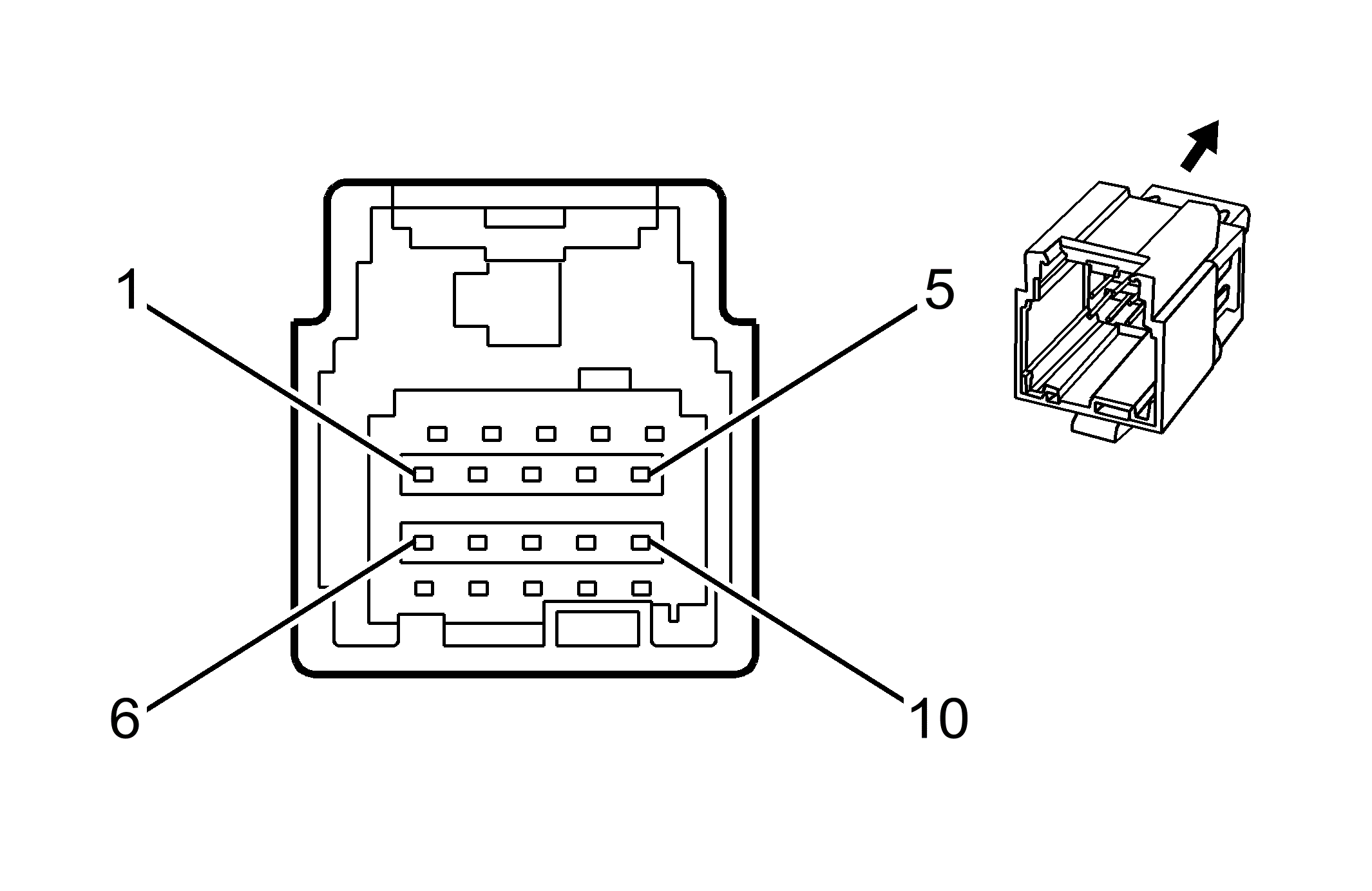

Connector Part Information Harness Type: Rear Compartment Lid OEM Connector: 15491259 Service Connector: Service by Harness - See Part Catalog Description: 10-Way F 0.64 YESC Kaizen Series (BK)	Connector Part Information Harness Type: Body OEM Connector: 13914042 Service Connector: 13577789 Description: 10-Way M 0.64 Kaizen Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	13575826	J-35616-65B (LT BU)	J-38125-215A	7114-4618-02	Yazaki 27	P	P
III	13575827	J-35616-65B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	VT/WH	5065	I	-	Stop Lamp Relay Coil Control	1	0.5	VT/WH	5065	II	-
2	0.5	YE/D-BU	5797	I	-	Rear Closure Handle Switch Open Signal	2	0.35	YE/D-BU	5797	II	-
3	0.5	VT/GY	1303	I	-	Lift Gate Ajar Switch Signal 1	3	0.5	VT/GY	1303	II	-
4	0.5	D-BU/YE	6795	I	-	Lift Glass/Rear Compartment Lid Motor Release Control 2	4	0.5	D-BU/YE	6795	II	-
5	0.75	VT/GY	709	I	-	Left Park Lamp Control	5	0.75	VT/GY	709	III	-
6	0.75	GY/BN	309	I	-	Right Park Lamp Control	6	0.75	GY/BN	309	III	-
7	0.75	BK	550	I	-	Ground	7	0.75	BK	550	III	-
8	0.75	BK	2550	I	-	Ground	8	0.75	BK	2550	III	-
9	0.75	BK	2350	I	-	Ground	9	0.75	BK	2350	III	-
10	0.75	D-GN/WH	24	I	-	Backup Lamp Control	10	0.75	D-GN/WH	24	III	-
