Fuel Tank Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Fuel Tank Components

Items
1. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve
2. A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly
3. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor
4. B46 Fuel Level Sensor
5. G12 Fuel Pump G12 Fuel Pump
6. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor

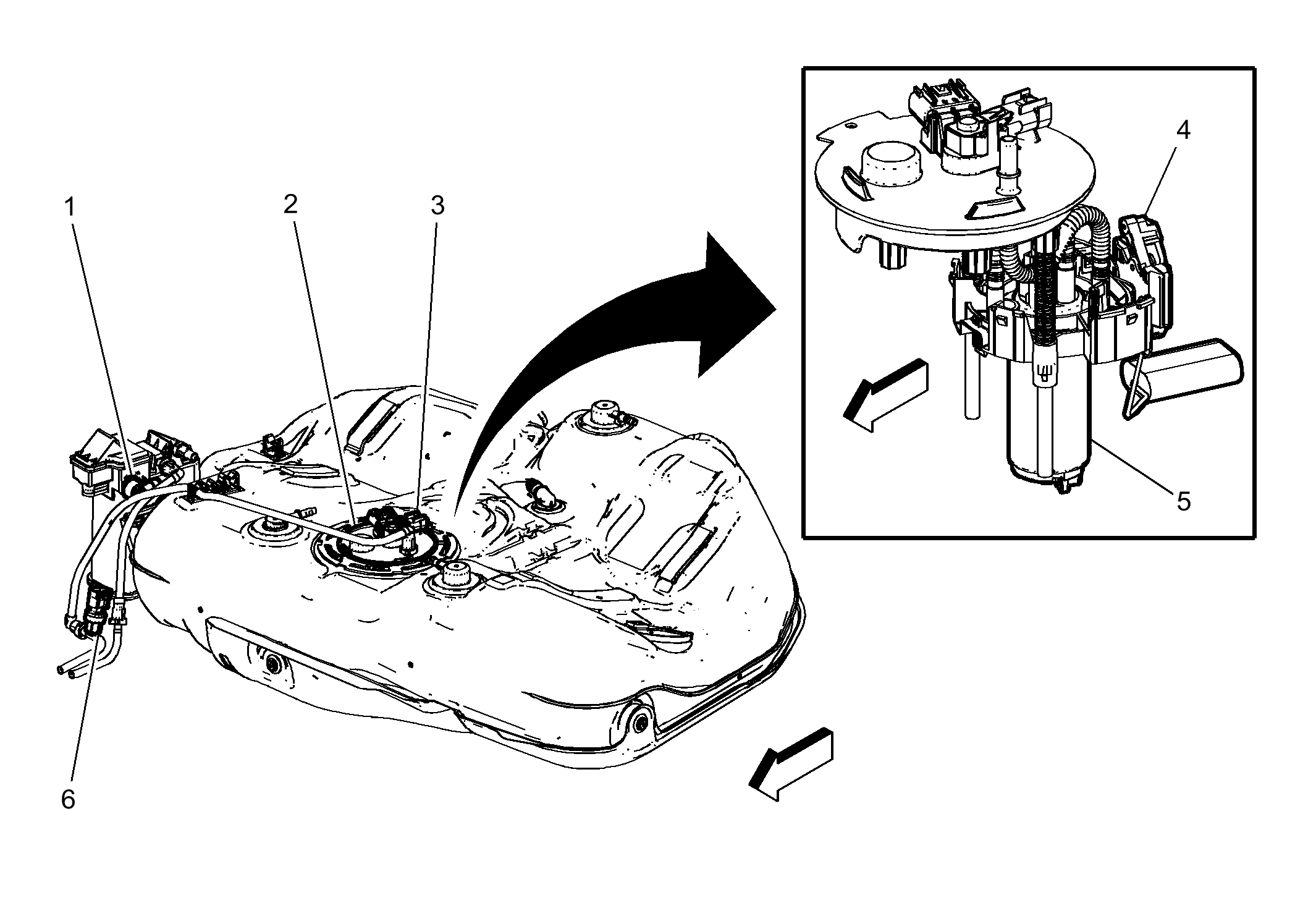

Fig 1: Fuel Tank Components
GM3708267Courtesy of GENERAL MOTORS COMPANY
