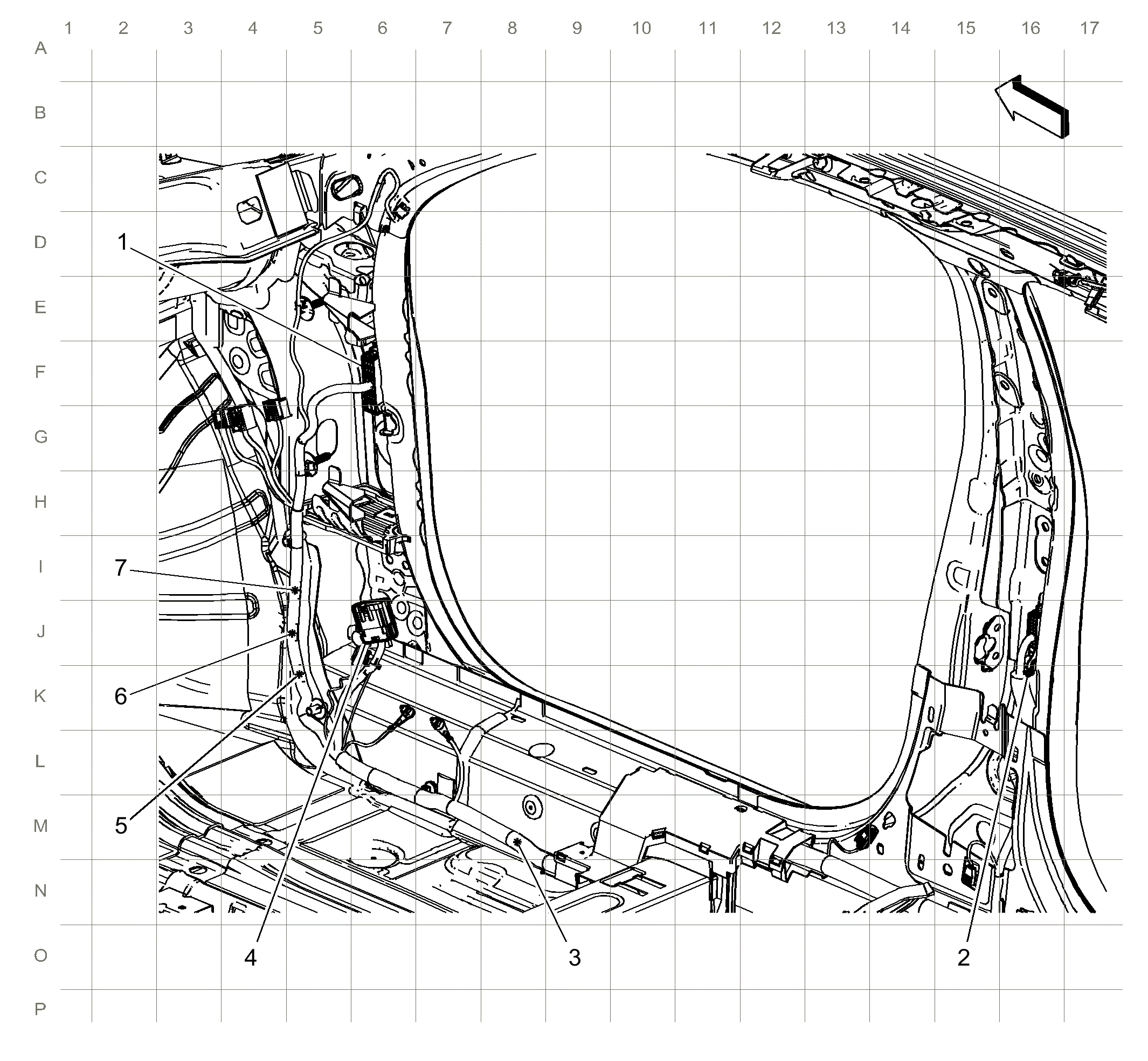

Right Front of Passenger Compartment Harness Routing 1 of 2
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| X600 X600 Passenger Door Harness to Body Harness |
| X800 X800 Right Rear Door Harness to Body Harness |
| J308 |
| X220 (UQA or UVC) X220 Instrument Panel Harness to Body Harness |
| J236 |
| J209 (KTA or UPH) |
| J208 (KTA or UPH) |
