Right Front of Engine Harness Routing (LCV)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

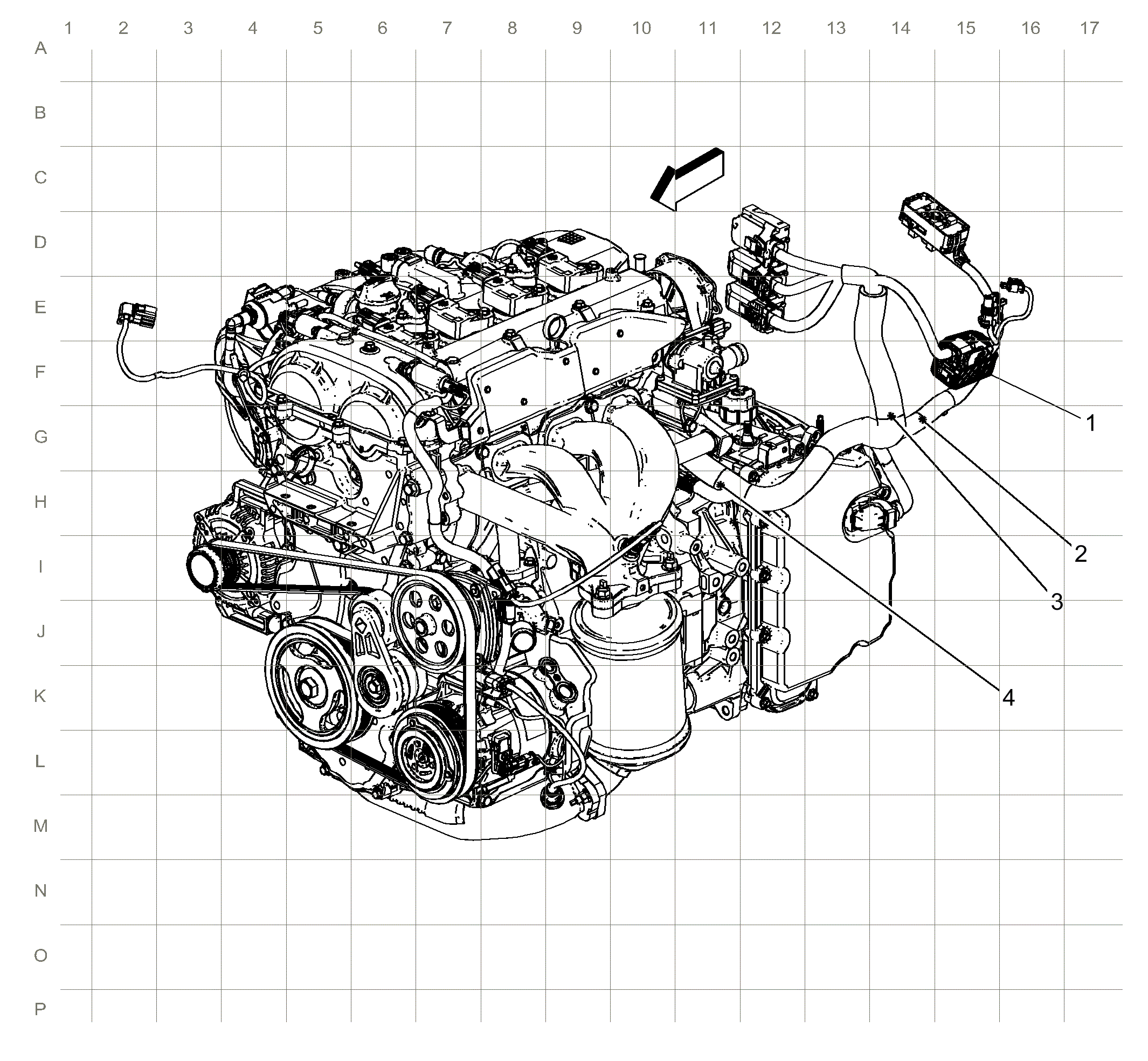

Fig 1: Right Front of Engine Harness Routing (LCV)
GM4183546Courtesy of GENERAL MOTORS COMPANY
Items
X115 X115 Engine Harness to Body Harness
J139
J112
J121
