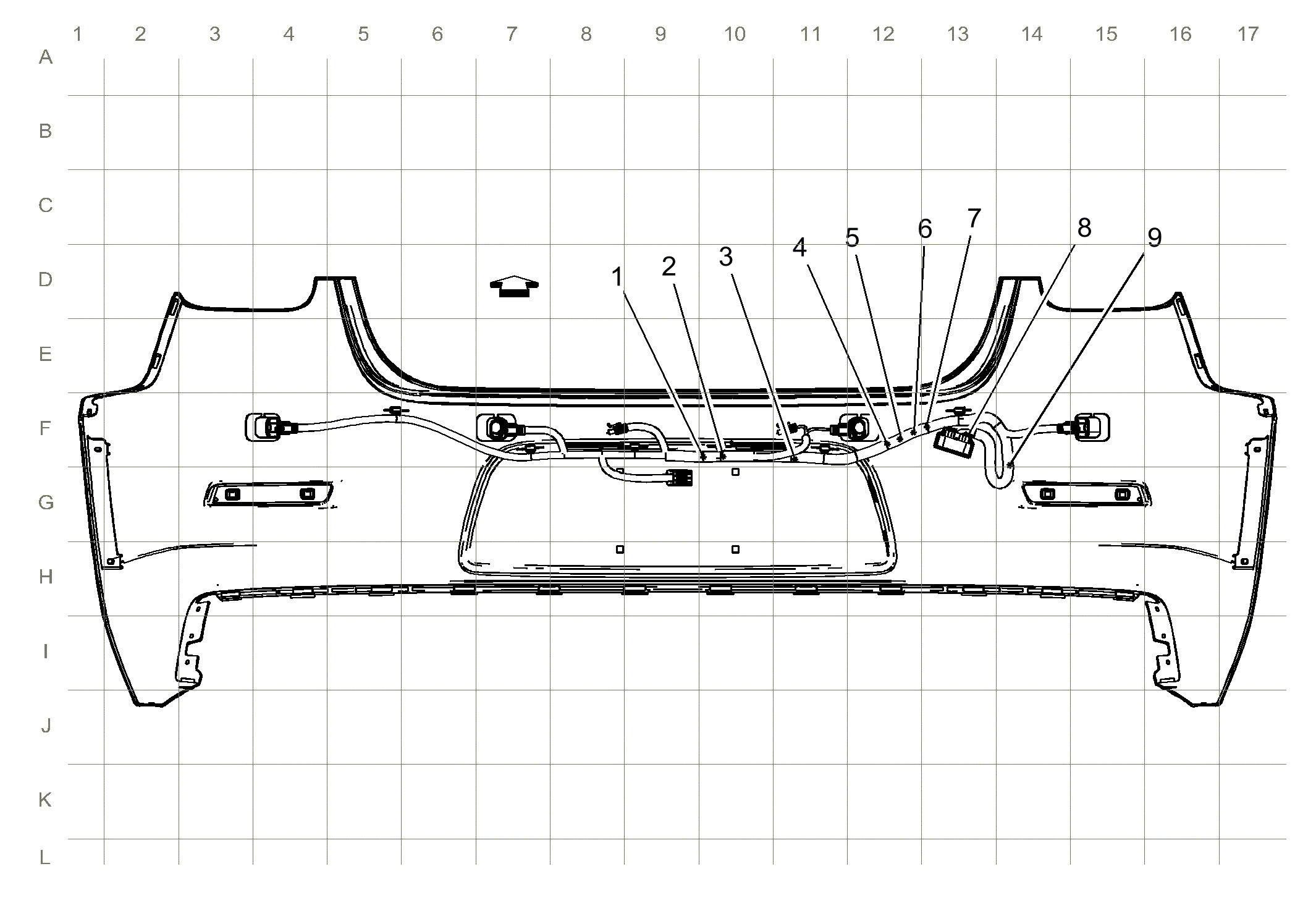

Rear Fascia Harness Routing
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| J489 (UVC) |
| J486 |
| J487 |
| J417 (UFG or UFT) |
| J484 (UD7) |
| J485 (UD7) |
| J418 (UFG or UFT) |
| X415 X415 Rear Fascia Harness to Body Harness |
| J488 (UVC) |
