Passenger Door Harness Routing
Passenger Door Harness Routing
WARNING:
This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

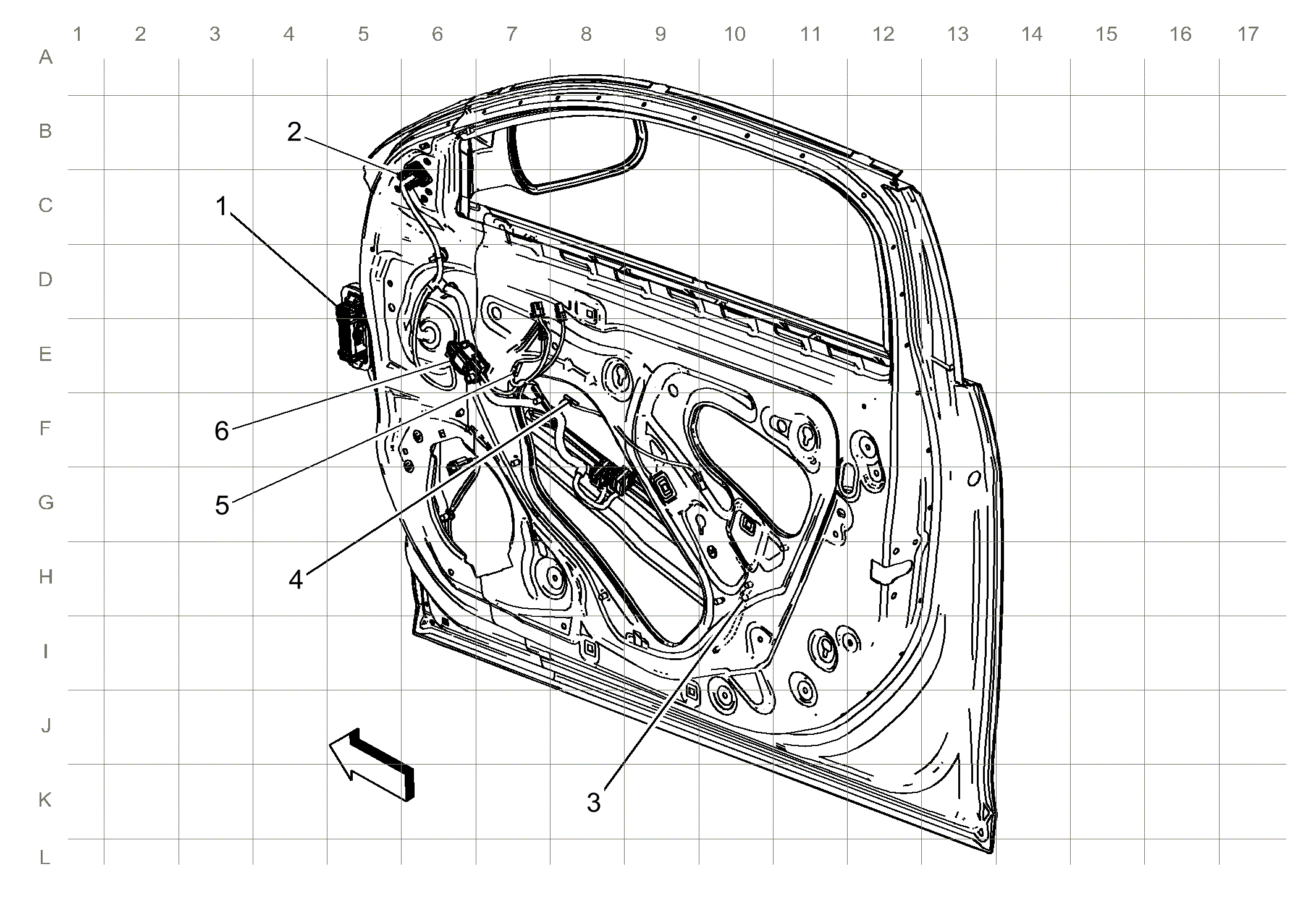

Fig 1: Passenger Door Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
X600
X600 Passenger Door Harness to Body Harness
X610
X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness
J604
J605
J606
X605
X605 Passenger Door Harness to Passenger Door Trim Harness
