Section 16 (Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams)
>>
Schematic Wiring Diagrams
>>
Harness Routing Views
>>
Left Side of Luggage Compartment Harness Routing
Left Side of Luggage Compartment Harness Routing
WARNING:
This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

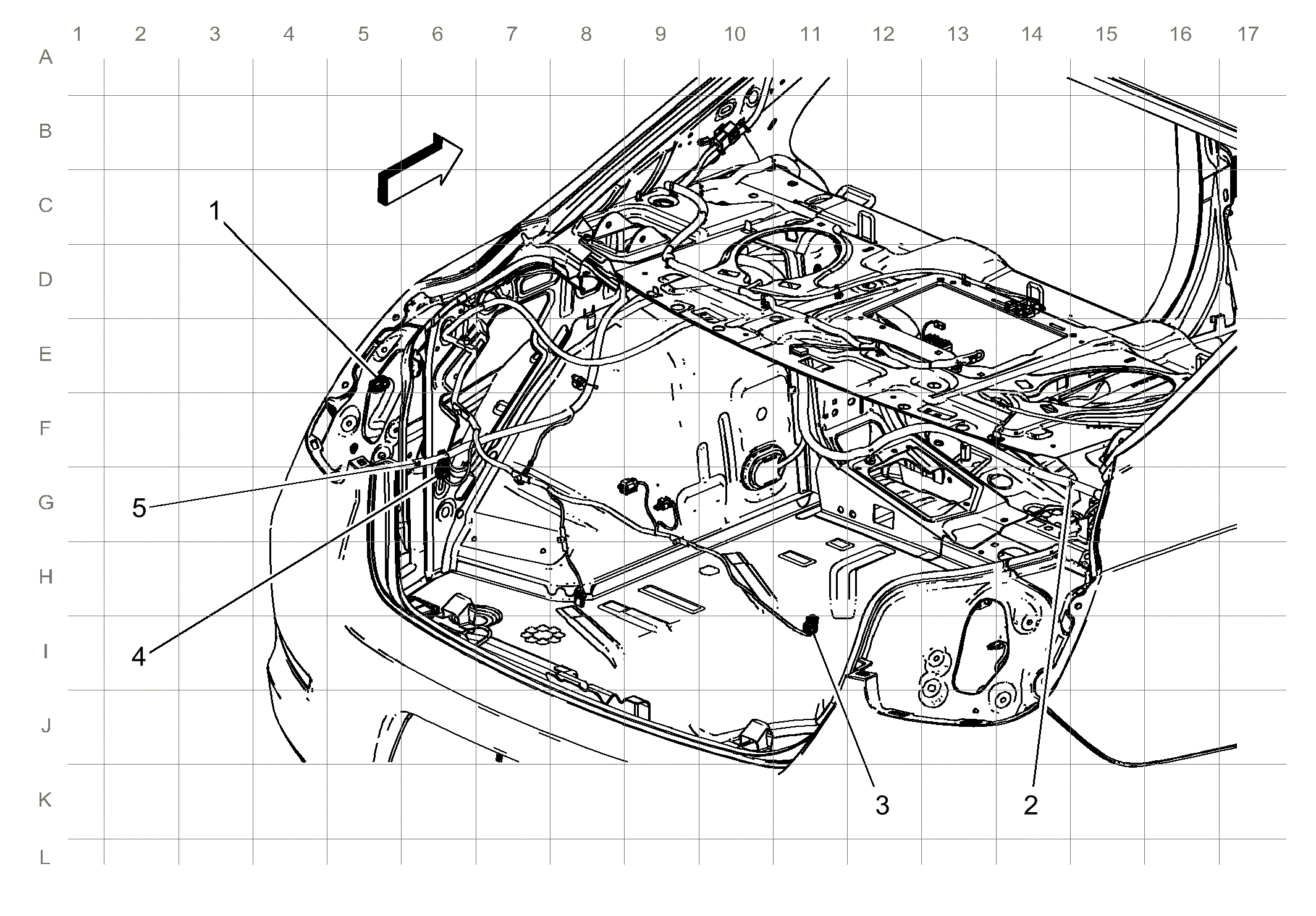

Fig 1: Left Side of Luggage Compartment Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
X410
X410 Body Harness to Tail Lamp Assembly - Left Harness (-1LZ)
X410 Body Harness to Tail Lamp Assembly - Left Harness (1LZ)
J402
X920
X920 Rear Compartment Lid Harness to Rear Compartment Tail Lamp - Right Harness (-1LZ)
X920 Rear Compartment Lid Harness to Rear Compartment Tail Lamp - Right Harness (1LZ)
X910
X910 Rear Compartment Lid Harness to Rear Compartment Tail Lamp - Left Harness (-1LZ)
J403
