Left Rear Door Harness Routing

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

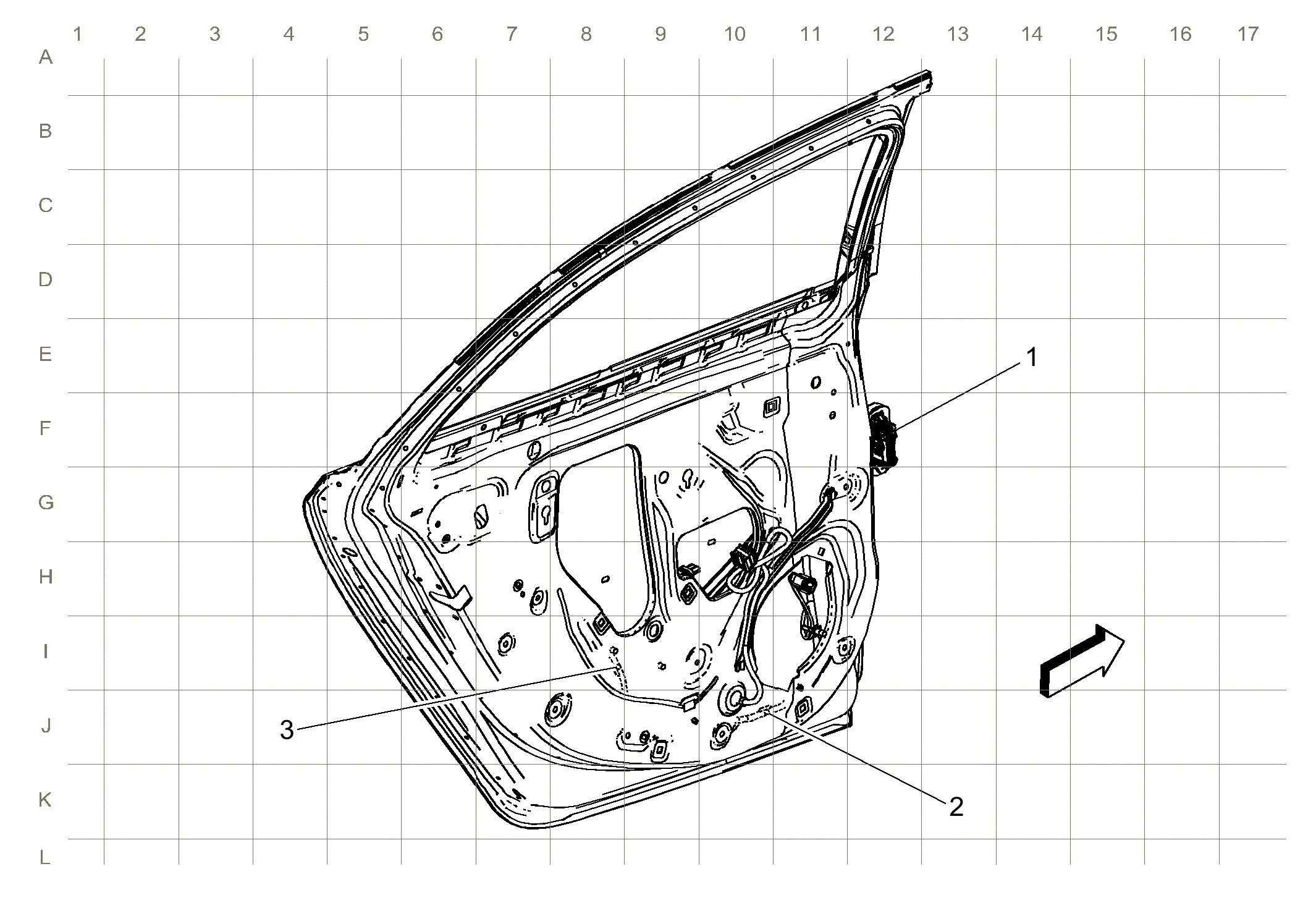

Fig 1: Left Rear Door Harness Routing
GM3708894Courtesy of GENERAL MOTORS COMPANY
Items
X700 X700 Left Rear Door Harness to Body Harness
J703
J706
