Floor of Passenger Compartment Harness Routing

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

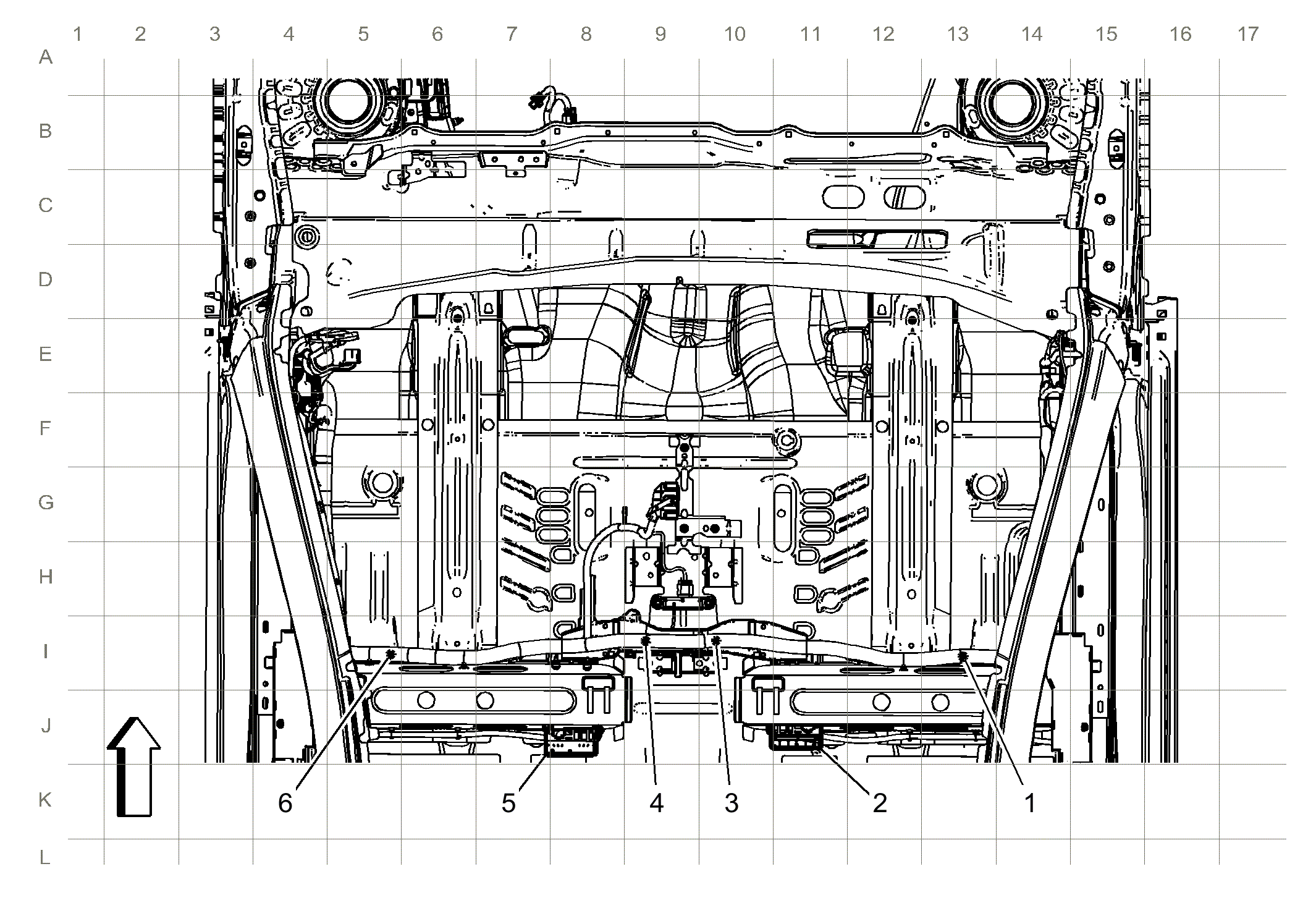

Fig 1: Floor of Passenger Compartment Harness Routing
GM4217793Courtesy of GENERAL MOTORS COMPANY
Items
J325
X320 X320 Body Harness to Passenger Seat Harness
J320
J317
X310 X310 Body Harness to Driver Seat Harness
J319
