Body Harness Routing - Left Engine Compartment 1 of 2

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

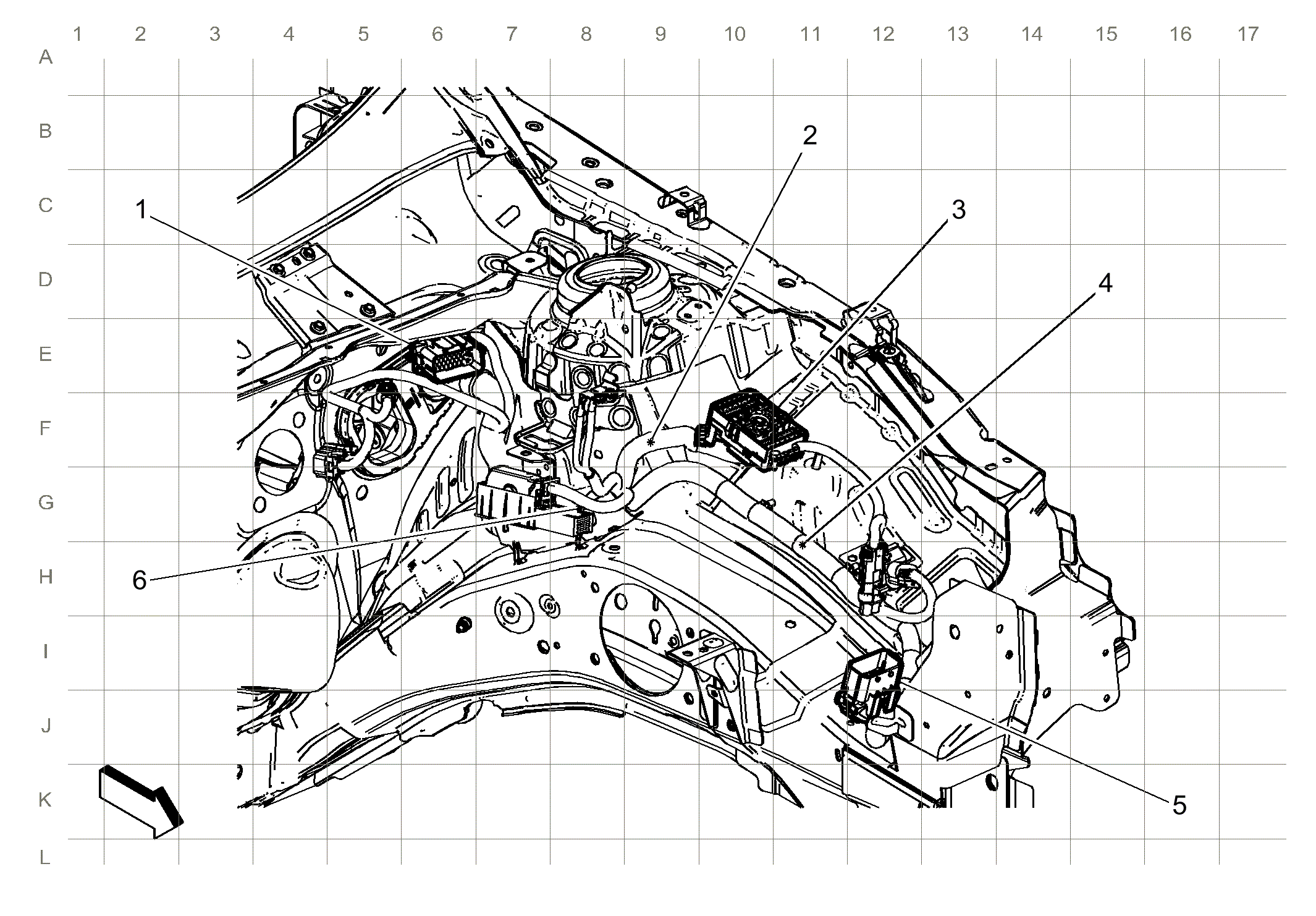

Fig 1: Body Harness Routing - Left Engine Compartment 1 of 2
GM3708867Courtesy of GENERAL MOTORS COMPANY
Items
X150 X150 Forward Lamp Harness to Body Harness
J123
X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5 (KL9)X50A Fuse Block - Underhood X6
J110
X115 X115 Engine Harness to Body Harness
J136
