Right Side of the Luggage Compartment Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Right Side of the Luggage Compartment Components

Items
1. K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module
2. K38 Chassis Control Module (VRI) K38 Chassis Control Module
3. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1T3 Audio Amplifier X2T3 Audio Amplifier X3

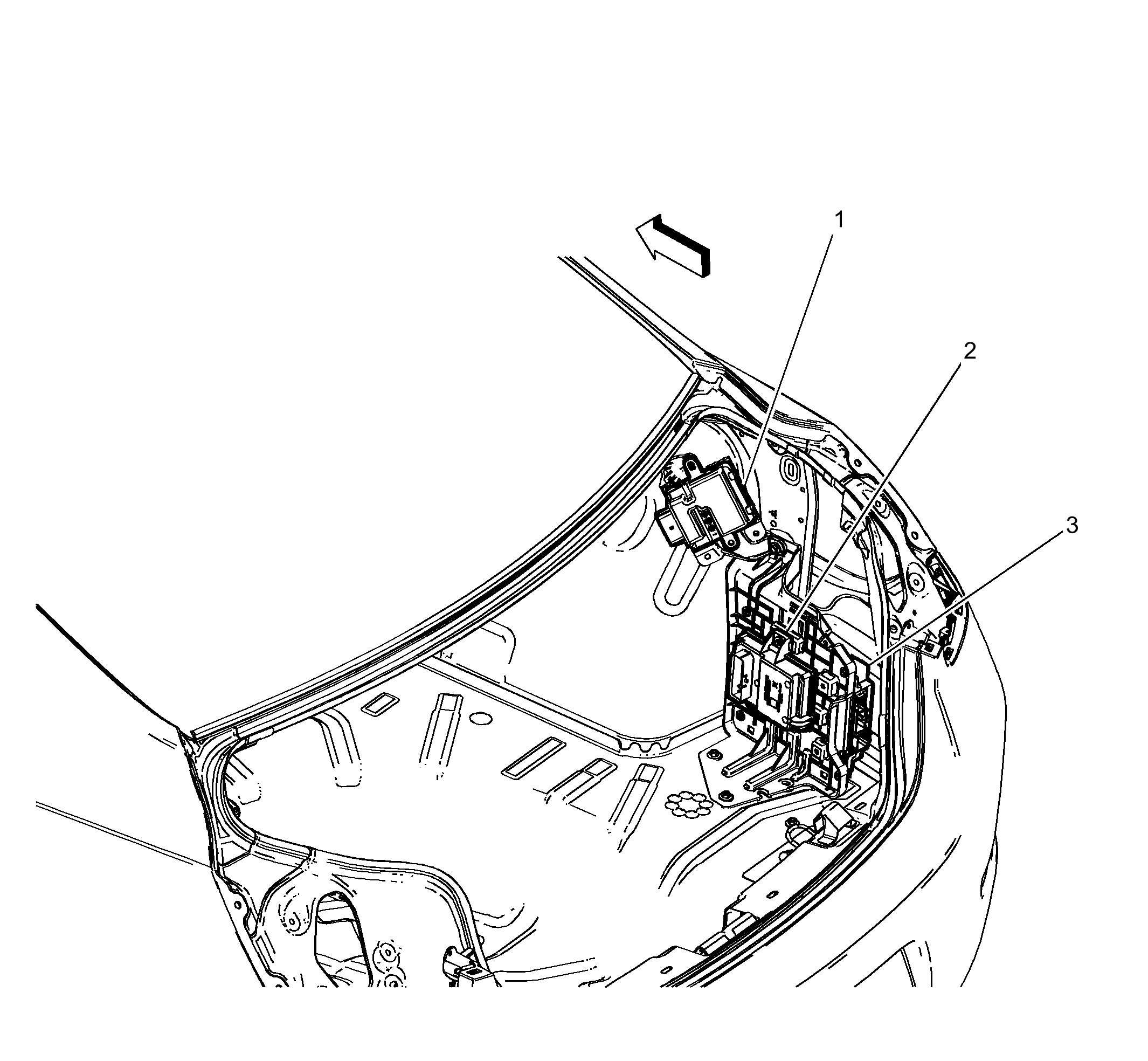

Fig 1: Right Side of the Luggage Compartment Components
GM3708291Courtesy of GENERAL MOTORS COMPANY
