Rear of Vehicle Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

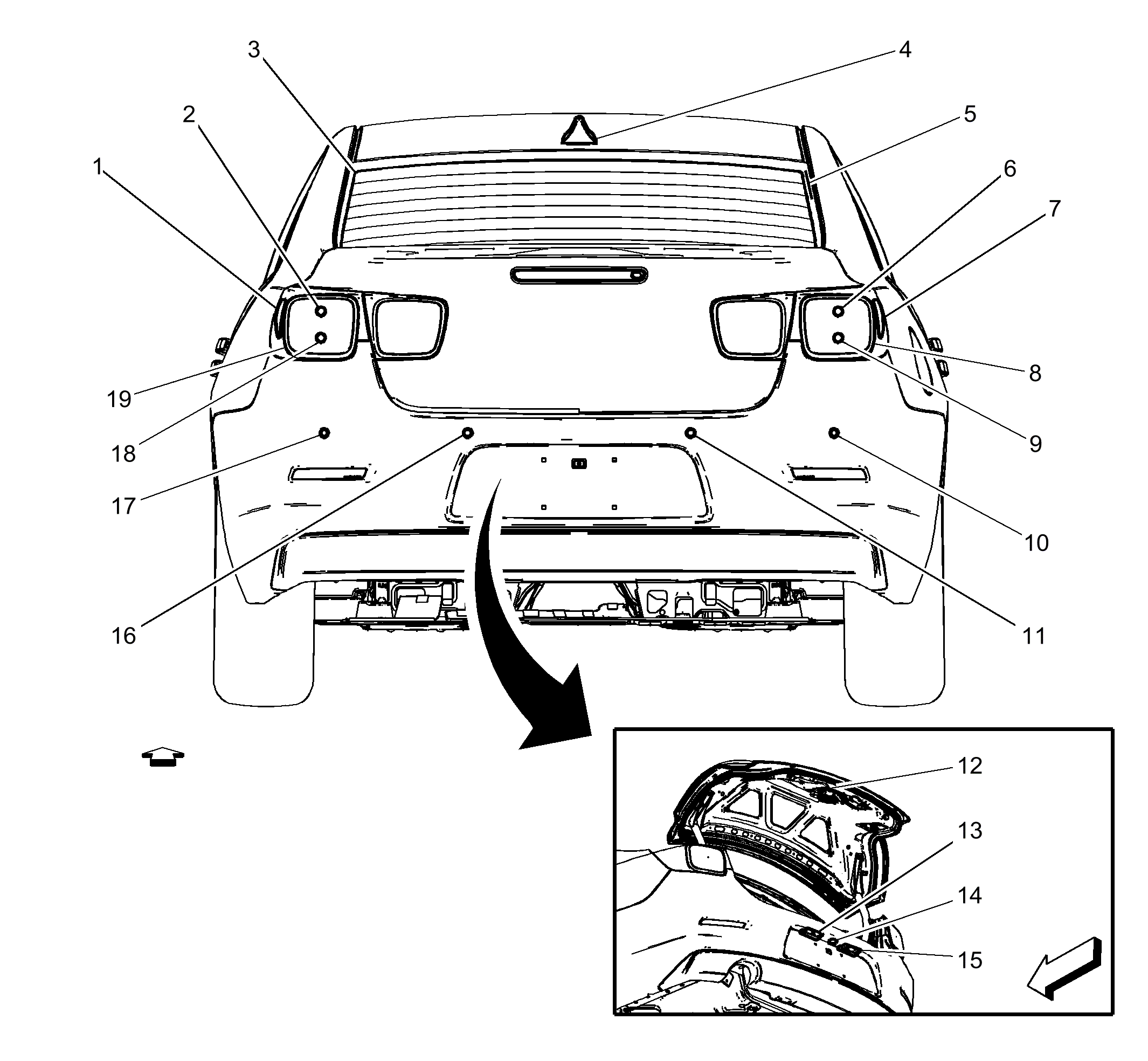

Rear of Vehicle Components
| Items |
|---|
| 1. E2LR Side Marker Lamp - Left Rear E2LR Side Marker Lamp - Left Rear |
| 2. E5AA Tail/Stop Lamp - Left E5AA Tail/Stop Lamp - Left (1LZ) |
| 3. E18 Rear Defogger Grid |
| 4. T4G Cellular Phone, Navigation and Digital Radio Antenna T4G Cellular Phone, Navigation and Digital Radio Antenna X1 (UE1 without CV3)T4G Cellular Phone, Navigation and Digital Radio Antenna X3 (UHQ without UE1) |
| 5. T4M Radio Antenna T4M Radio Antenna |
| 6. E5AB Tail/Stop Lamp - Right E5AB Tail/Stop Lamp - Right (1LZ) |
| 7. E2RR Side Marker Lamp - Right Rear E2RR Side Marker Lamp - Right Rear |
| 8. E42R Tail Lamp Assembly - Right |
| 9. E4RR Turn Signal Lamp - Right Rear E4RR Turn Signal Lamp - Right Rear |
| 10. B78H Rear Object Sensor - Right Outer (UD7) B78H Rear Object Sensor - Right Outer (UD7) |
| 11. B78F Rear Object Sensor - Right Middle (UD7) B78F Rear Object Sensor - Right Middle (UD7) |
| 12. M40 Rear Compartment Lid Latch M40 Rear Compartment Lid Latch |
| 13. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 14. B87 Rearview Camera (UVC) B87 Rearview Camera (UVC) |
| 15. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 16. B78E Rear Object Sensor - Left Middle (UD7) B78E Rear Object Sensor - Left Middle (UD7) |
| 17. B78G Rear Object Sensor - Left Outer (UD7) B78G Rear Object Sensor - Left Outer (UD7) |
| 18. E4LR Turn Signal Lamp - Left Rear E4LR Turn Signal Lamp - Left Rear |
| 19. E42L Tail Lamp Assembly - Left |
