Rear Fascia Components (UFT)

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Rear Fascia Components (UFT)

Items
1. B218R Side Object Sensor Module - Right (UFG or UFT) B218R Side Object Sensor Module - Right (UFG/UFT)
2. B218L Side Object Sensor Module - Left (UFG or UFT) B218L Side Object Sensor Module - Left (UFG/UFT)

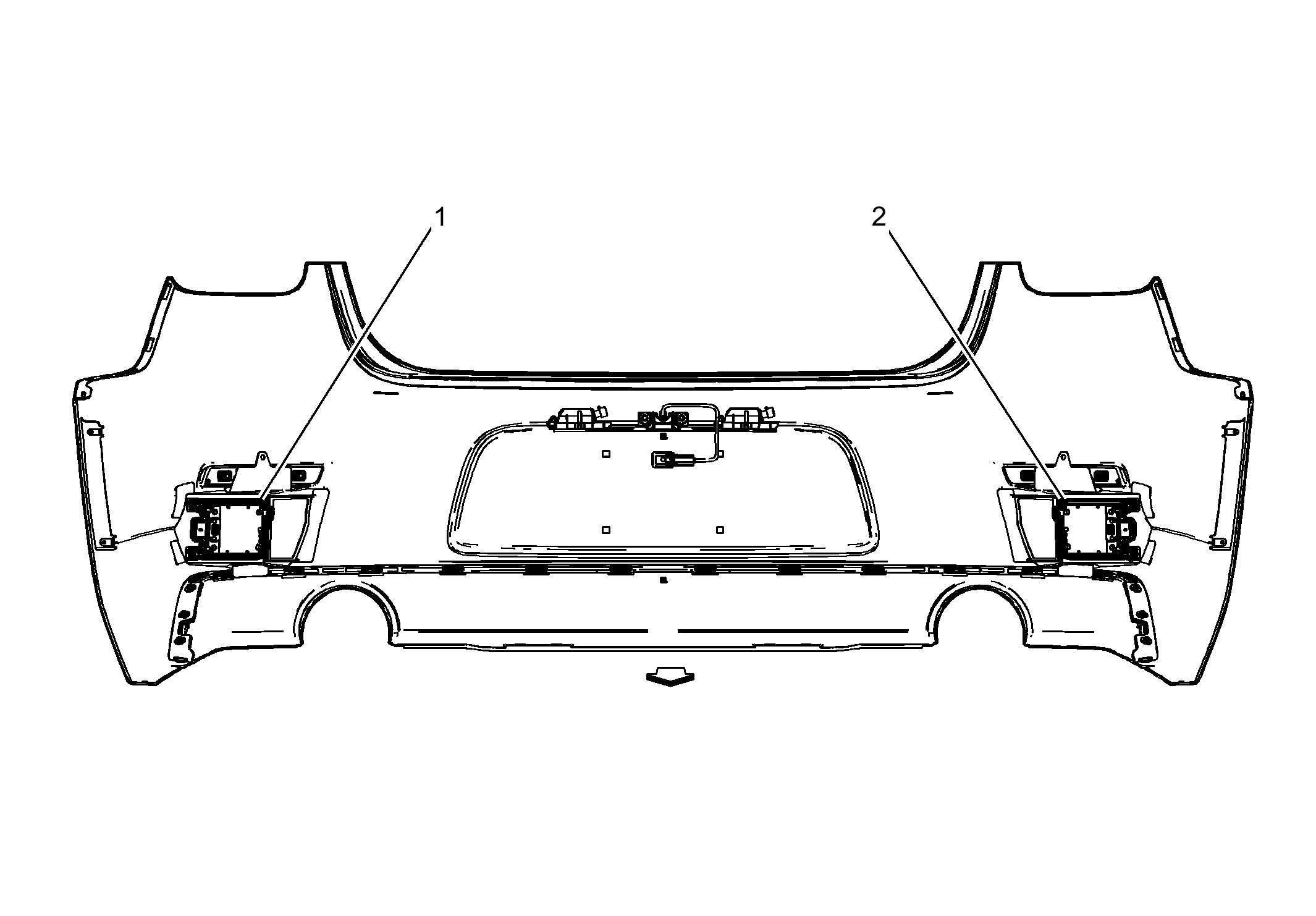

Fig 1: Rear Fascia Components (UFT)
GM3708300Courtesy of GENERAL MOTORS COMPANY
