Rear Compartment Lid Components
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

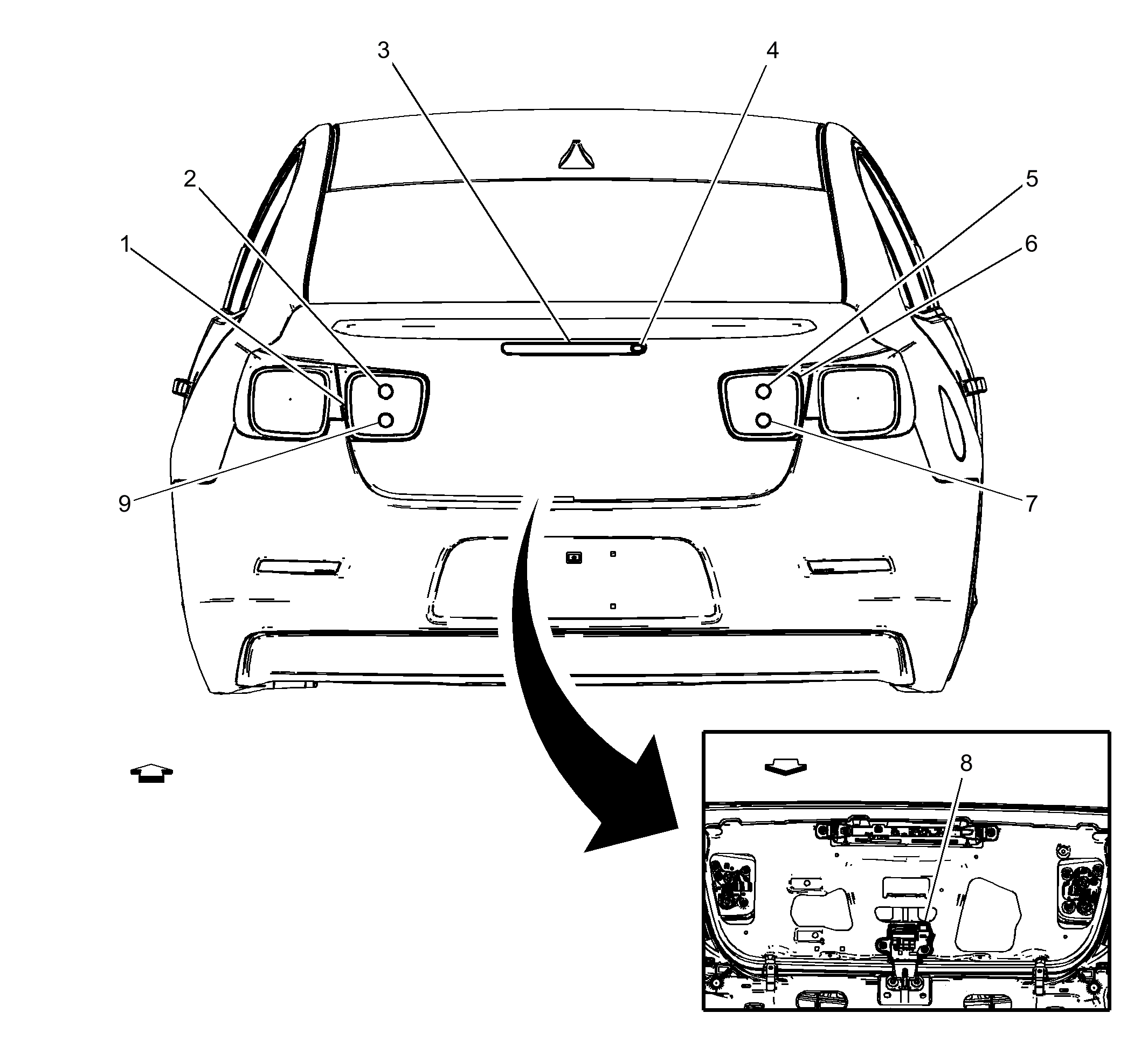

Rear Compartment Lid Components
| Items |
|---|
| 1. E58L Rear Compartment Lid Tail Lamp Assembly - Left |
| 2. E5G Tail Lamp - Left Inner E5G Tail Lamp - Left Inner (1LZ)E5G Tail Lamp - Left Inner (without 1LZ) |
| 3. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 4. S58 Rear Compartment Lid Unlatch Switch S58 Rear Compartment Lid Unlatch Switch |
| 5. E5H Tail Lamp - Right Inner E5H Tail Lamp - Right Inner (1LZ) |
| 6. E58R Rear Compartment Lid Tail Lamp Assembly - Right |
| 7. E5B Backup Lamp - Right E5B Backup Lamp - Right (1LZ)E5B Backup Lamp - Right (without 1LZ) |
| 8. M40 Rear Compartment Lid Latch M40 Rear Compartment Lid Latch |
| 9. E5A Backup Lamp - Left E5A Backup Lamp - Left (1LZ)E5A Backup Lamp - Left (without 1LZ) |
