Luggage Compartment Components

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
Luggage Compartment Components

Items
1. B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear
2. K46 Radio Antenna Module
3. P19AA Speaker - Right Subwoofer (UQA) P19AA Speaker - Right Subwoofer (UQA)
4. T15 Navigation Antenna Signal Splitter (UE1) T15 Navigation Antenna Signal Splitter X1 (UE1 with UHQ)T15 Navigation Antenna Signal Splitter X2 (UE1 with UHQ)T15 Navigation Antenna Signal Splitter X3 (UE1 with UHQ)
5. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1
6. E8S Rear Compartment Courtesy Lamp E8S Rear Compartment Courtesy Lamp
7. P19N Speaker - Left Subwoofer (UQA) P19N Speaker - Left Subwoofer

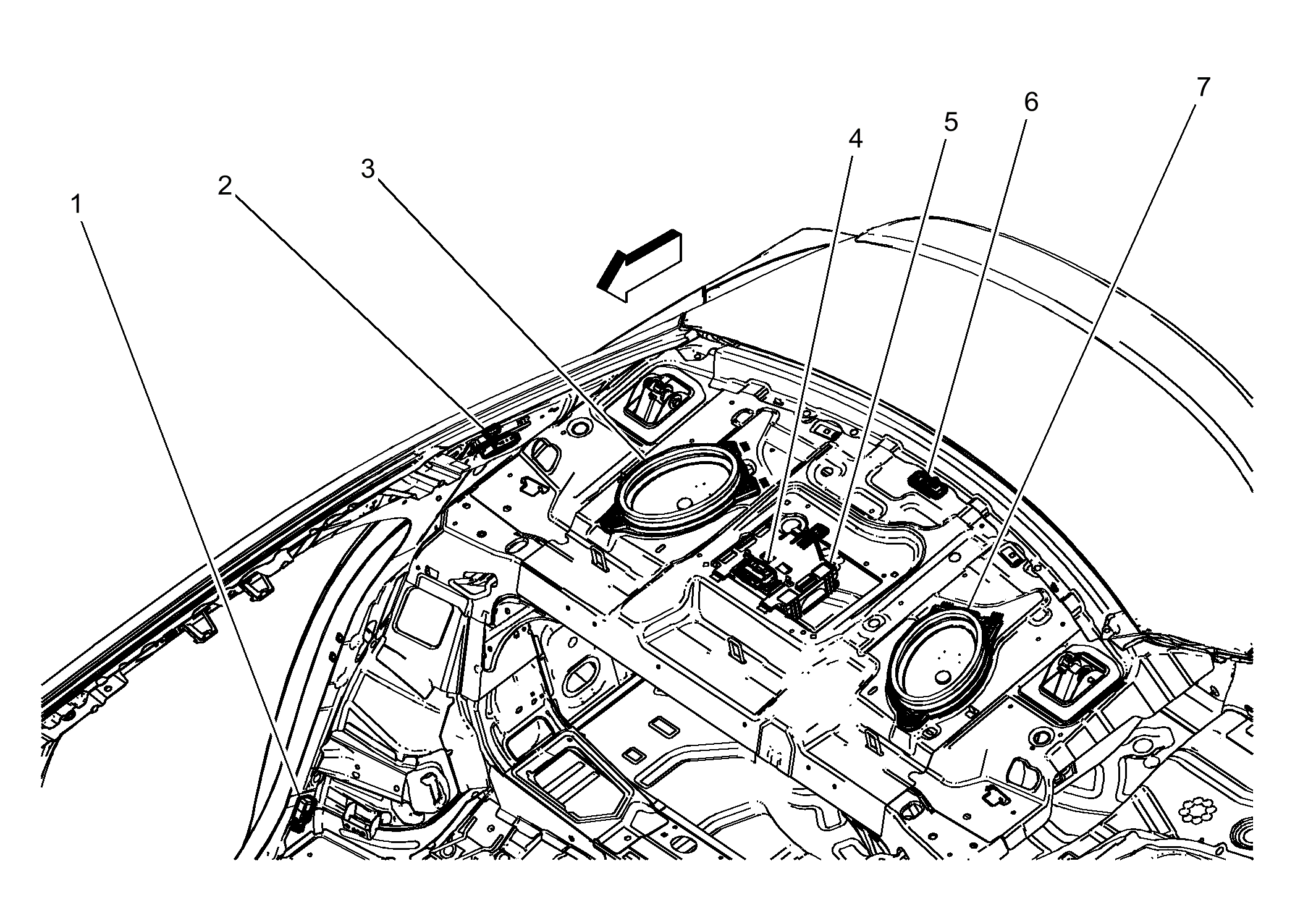

Fig 1: Luggage Compartment Components
GM3708269Courtesy of GENERAL MOTORS COMPANY
