Headlamp Replacement

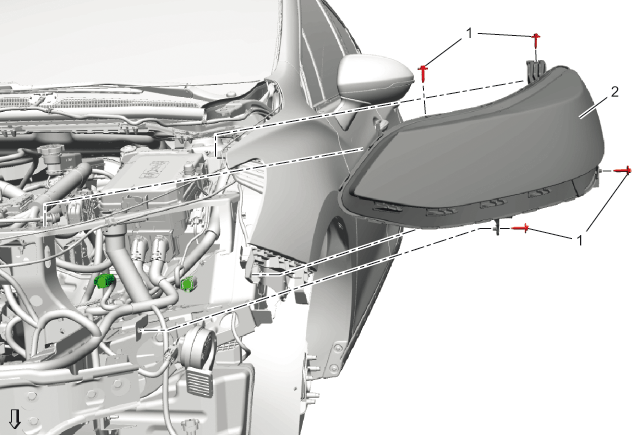

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Headlamp Bolt [4] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Procedure Disconnect the electrical connector. Replace the bulb as necessary. Headlamp Aiming » Adjust

Callout

Component Name

Headlamp Bolt [4]

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp

Procedure
