Rear Side Door Replacement

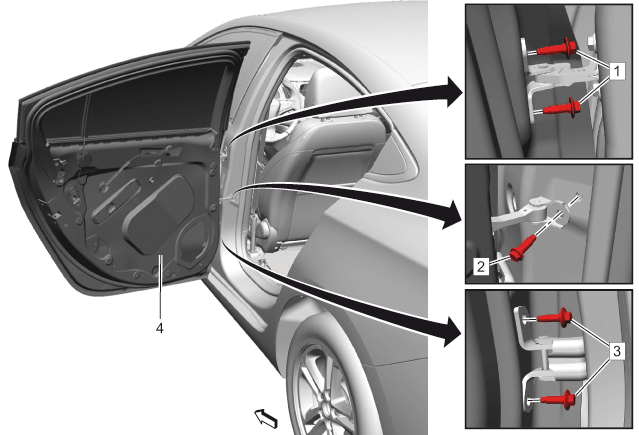

Fig 1: Rear Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Upper Hinge Bolt [2x] CAUTION: Refer to Fastener Caution Procedure Rear Side Door Water Deflector Replacement » Remove Disconnect the electrical connector. Support the door before removing the hinge bolts. With the aid of an assistant, remove the door. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Check Link Bolt Tighten 22 N.m (16 lb ft)
3	Rear Side Door Lower Hinge Bolt [2x] Tighten 25 N.m (18 lb ft)
4	Rear Side Door Procedure Transfer all of the internal components. Rear Side Door» Adjust - Clearance and Flushness Specifications
