Rear Compartment Lid Hinge Replacement

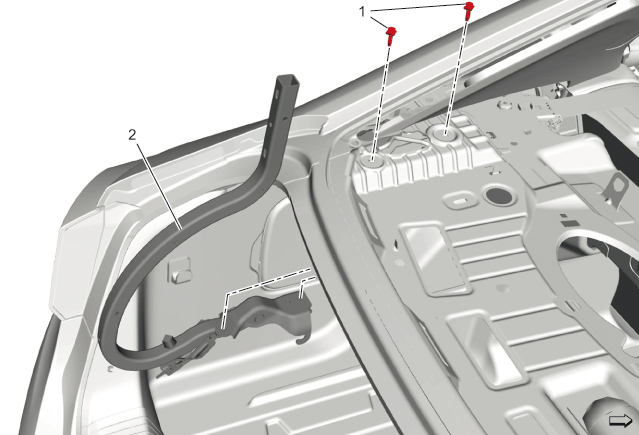

Fig 1: Rear Compartment Lid Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Lid Replacement Rear Window Panel Trim Replacement Rear Compartment Lid Hinge Torque Rod Replacement
1	Rear Compartment Lid Hinge Bolt [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Hinge Procedure Rear Compartment Lid» Adjust - Clearance and Flushness Specifications

Callout

Component Name

Preliminary Procedures

Rear Compartment Lid Hinge Bolt [2x]

CAUTION: Fastener Caution

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Hinge
Procedure
Rear Compartment Lid» Adjust - Clearance and Flushness Specifications
