Hood Replacement

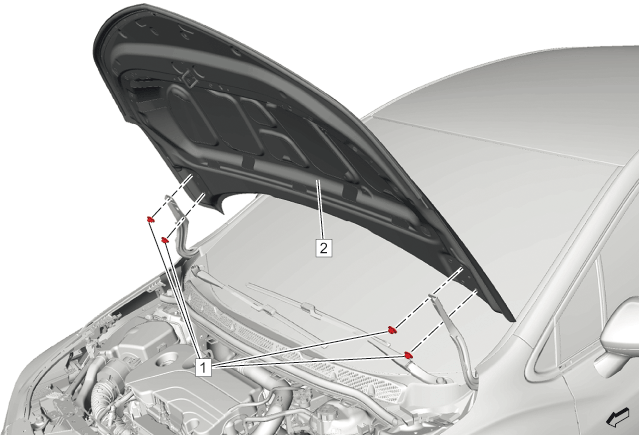

Fig 1: Hood

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1	Hood Hinge Nut [4x] CAUTION: Fastener Caution Tighten 22 N.m (16 lb ft)
2	Hood Procedure Reposition the front fender center insulator to access the washer hose connection. Disconnect the windshield washer hose at the left strut tower, unclip the hose from the body and hood hinge. With the aid of an assistant, remove the hood. Transfer components as necessary. Hood» Adjust - Clearance and Flushness Specifications

Callout

Component Name

WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Hood Hinge Nut [4x]

CAUTION: Fastener Caution

Tighten
22 N.m (16 lb ft)

Hood

Procedure

Reposition the front fender center insulator to access the washer hose connection.
Disconnect the windshield washer hose at the left strut tower, unclip the hose from the body and hood hinge.
With the aid of an assistant, remove the hood.
Transfer components as necessary.
Hood» Adjust - Clearance and Flushness Specifications
