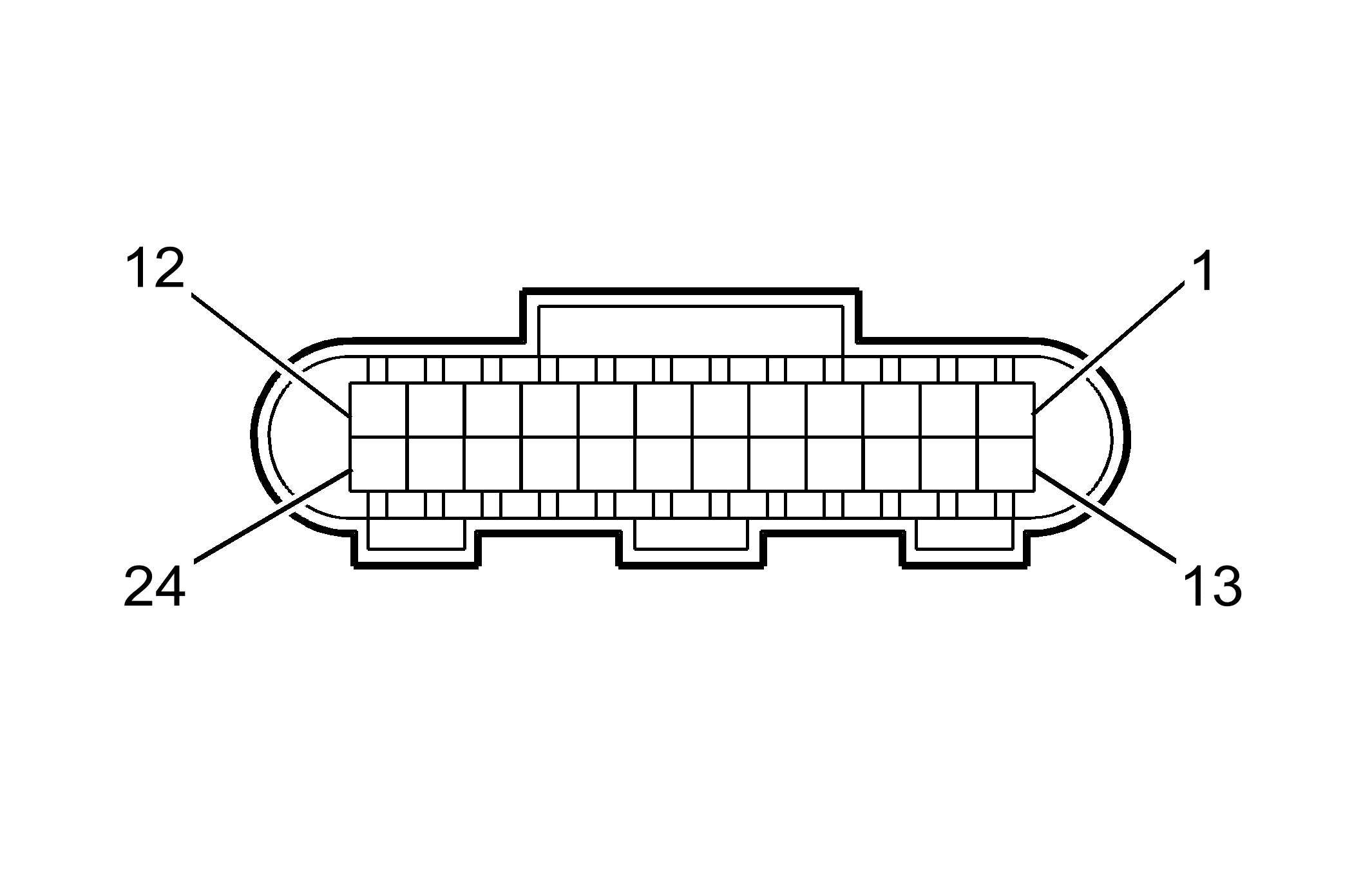

Park/Neutral Position Switch

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Service by Harness	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	D-GN	BA34	Park/Neutral Position Switch Range Signal (R)	I	-
2	-	D-GN	BA34	Park/Neutral Position Switch Range Signal (R)	I	-
3	-	D-GN	LR04	Backup Lamp Supply Voltage Signal	I	-
4	-	L-GN	AC95	Transmission Park/Neutral Signal	I	-
5	-	L-GN	AH04	Neutral Safety Switch Park/Neutral Signal	I	-
6	-	L-GN	AH04	Neutral Safety Switch Park/Neutral Signal	I	-
7	-	BN	AC80	Sensor 5 Volt Reference	I	-
8	-	BN	AC80	Sensor 5 Volt Reference	I	-
9	-	BN	AI03	Sensor 5 Volt Reference	I	-
10	-	L-GN	AC81	Fuel Tank Pressure Sensor Signal	I	-
11	-	L-GN	AC81	Fuel Tank Pressure Sensor Signal	I	-
12-13	-	-	-	Not Occupied	-	-
14	-	D-GN	AI02	Current Sensor Signal	I	-
15	-	D-GN	AI02	Current Sensor Signal	I	-
16	-	BK	ACE5	Ground	I	-
17	-	BK	ACE4	Ground	I	-
18	-	BK	ACE3	Ground	I	-
19	-	L-GN	BA19	Ignition Main Relay Supply Voltage	I	-
20	-	L-GN	BA30	Ignition Main Relay Supply Voltage	I	-
21	-	L-GN	BA30	Ignition Main Relay Supply Voltage	I	-
22	-	L-GN	BA52	Ignition Main Relay Supply Voltage	I	-
23	-	L-GN	BA55	Ignition Main Relay Supply Voltage	I	-
24	-	-	-	Not Occupied	-	-
