Wheel Speed Sensor And Switch Signal

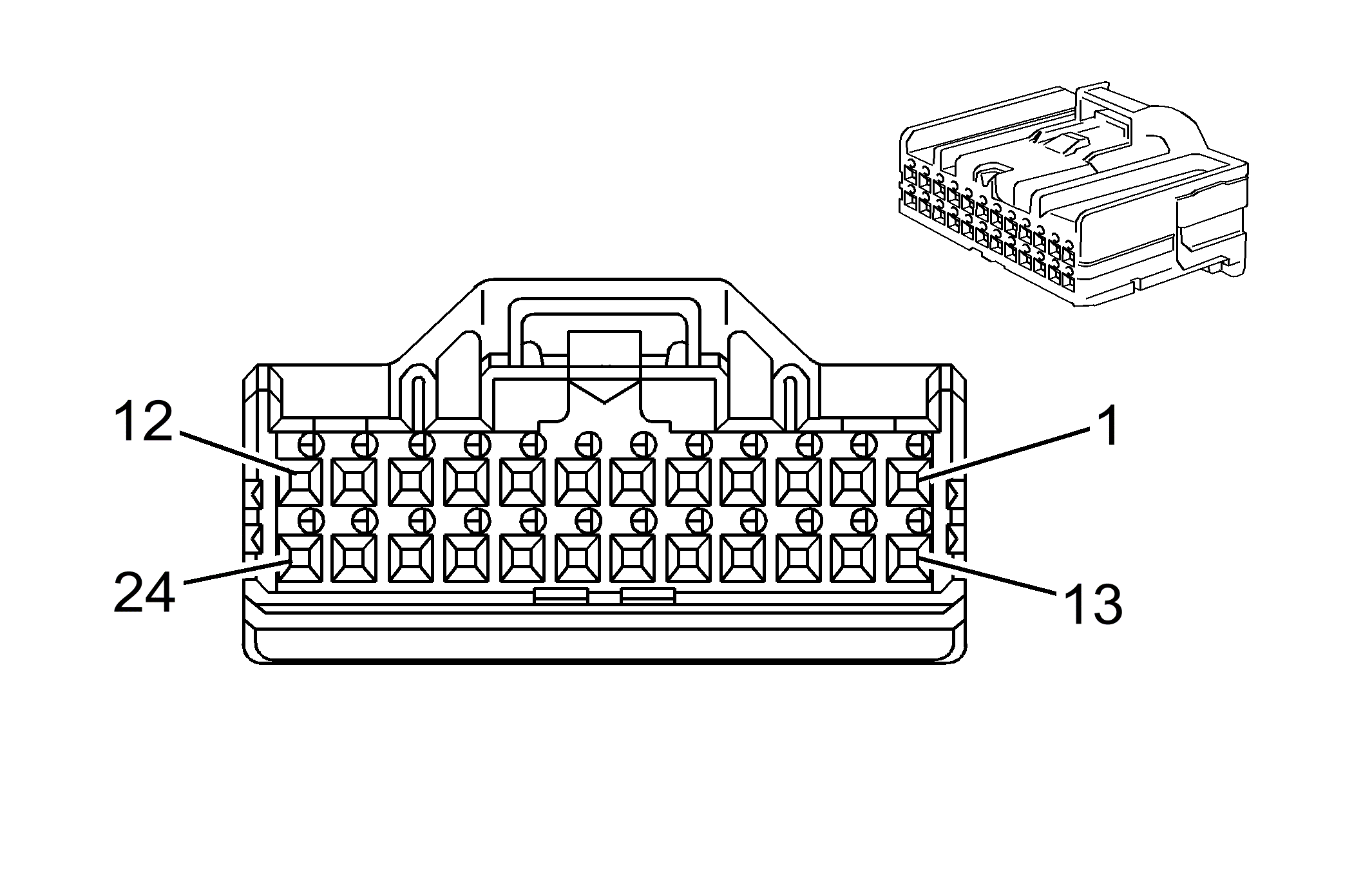

GM4089952

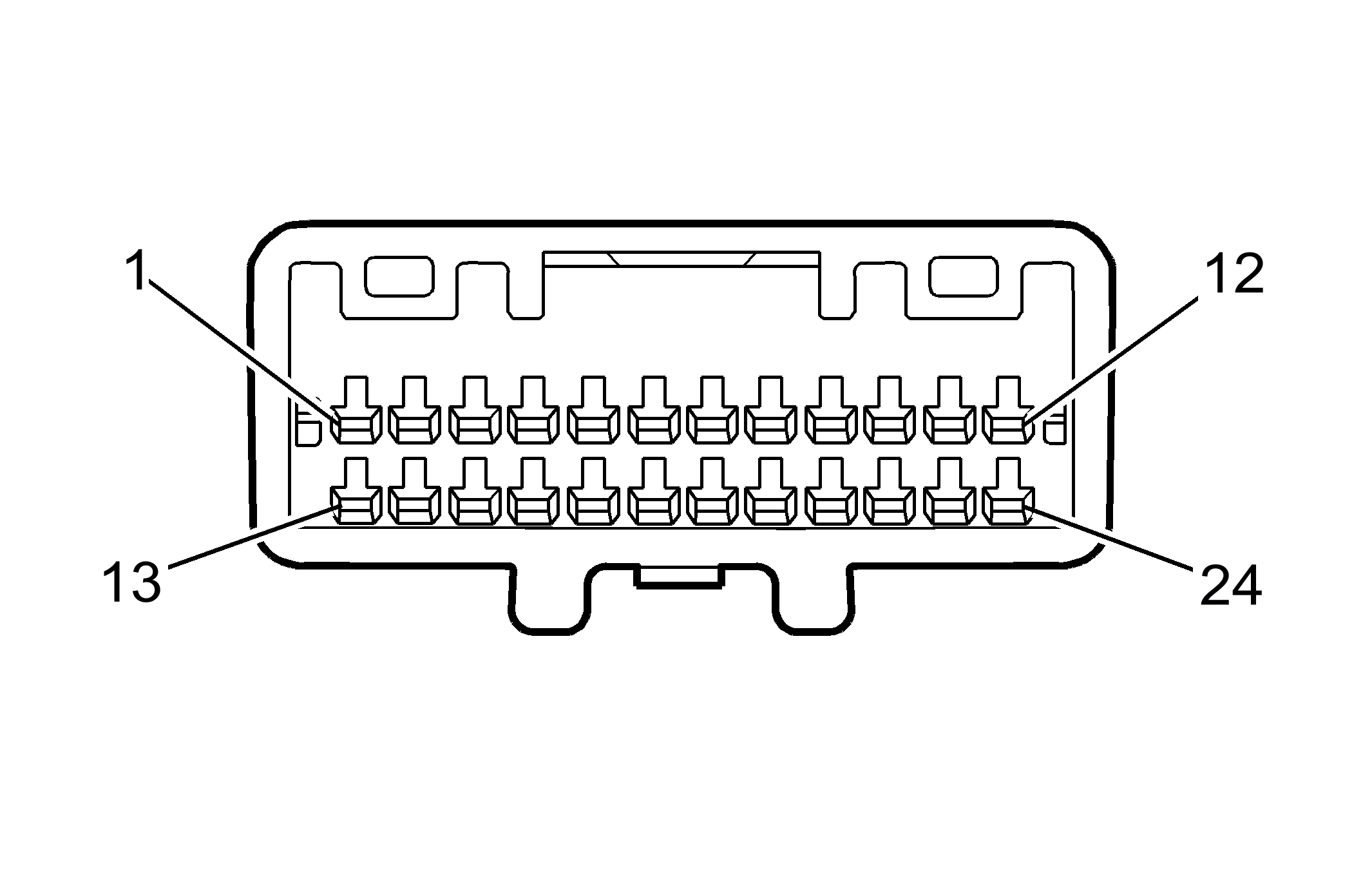

GM4065391
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: TH24FW-NH
  • Service Connector: Service by Harness
  • Description: 24-Way F 025 Series (NA)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: TH24MW-NH
  • Service Connector: Service by Harness
  • Description: 24-Way M 0.64 Series (NA)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available Not Available Not Available Service by Harness Not Available Not Available Not Available
II Not Available Not Available Not Available Service by Harness Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - BK AC82 I - Sensor Low Reference 1 - BK AC82 II -
2 - L-GN AC81 I - EVAP Emission Pressure Sensor Signal 2 - L-GN AC81 II -
3 - BN AC80 I - Sensor 5 Volt Reference 3 - BN AC80 II -
4 - D-BU BS28 I - Wheel Speed Sensor Low Reference Right Rear 4 - D-BU BS28 II -
5 - GY BS29 I - Wheel Speed Sensor Signal Right Rear 5 - PU BS29 II -
6 - WH BS30 I - Wheel Speed Sensor Signal Left Rear 6 - WH BS30 II -
7 - RD BS31 I - Wheel Speed Sensor Signal Left Rear 7 - RD BS31 II -
8-9 - - - - - Not Occupied 8-9 - - - - -
10 - GY FD19 I UD7 Right Rear Corner Object Sensor Signal 10 - GY FD19 II UD7
11 - L-GN FD16 I UD7 Right Rear Middle Object Sensor Signal 11 - L-GN FD16 II UD7
12 - OG FD13 I UD7 Left Rear Middle Object Sensor Signal 12 - OG FD13 II UD7
13 - D-BU AB43 I - Fuel Temperature Signal 13 - D-BU AB43 II -
14 - - - - - Not Occupied 14 - - - - -
15 - D-BU FB17 I - Run/Crank Ignition Voltage 15 - RD/BU FB17 II -
16 - GY FB18 I - K-Line Diagnostic Serial Data 16 - WH/RD FB18 II -
17 - BN PD13 I - Driver Door Ajar Switch Signal 17 - L-GN PD13 II -
18 - L-BU PD14 I - Passenger Door Ajar Switch Signal 18 - L-BU PD14 II -
19 - L-GN PD15 I - Right Sliding Door Ajar Switch Signal 19 - L-GN PD15 II -
20 - GY PD16 I - Left Sliding Door Ajar Switch Signal 20 - GY PD16 II -
21 - WH PD40 I - Rear Cargo Door Ajar Switch Signal 21 - WH PD40 II -
22 - PK FD10 I UD7 Left Rear Corner Object Sensor Signal 22 - PK FD10 II UD7
23 - YE FD09 I UD7 Object Sensor Low Reference- 23 - YE FD09 II UD7
24 - L-GN/BK FD08 I UD7 Object Sensor Supply Voltage 24 - L-GN/BK FD08 II UD7
