Door Lock Motor Control And Signal
|
|
|

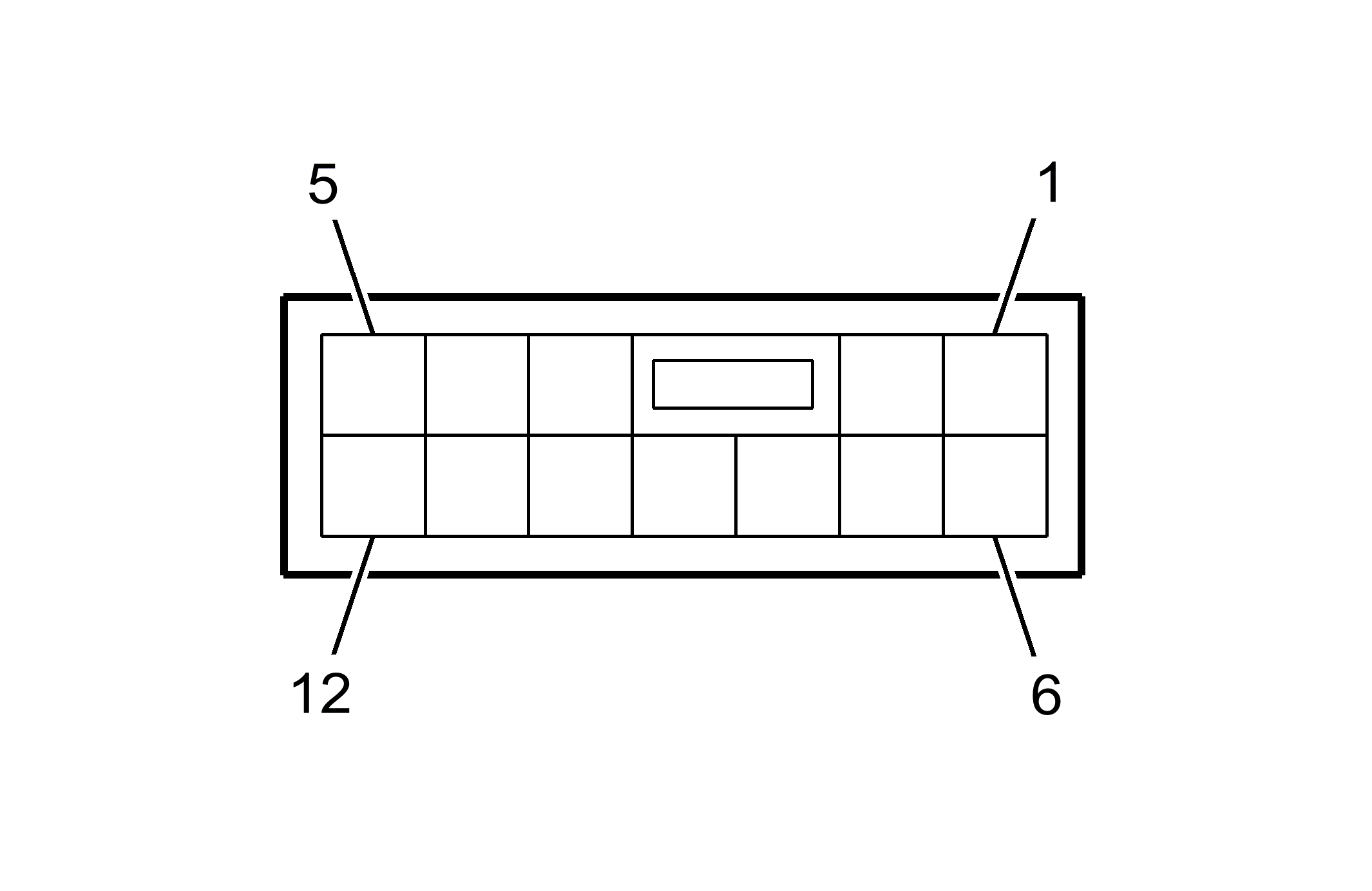

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: NS12FW-NH
- Service Connector: Service by Harness
- Description: 12-Way F (WH)
|

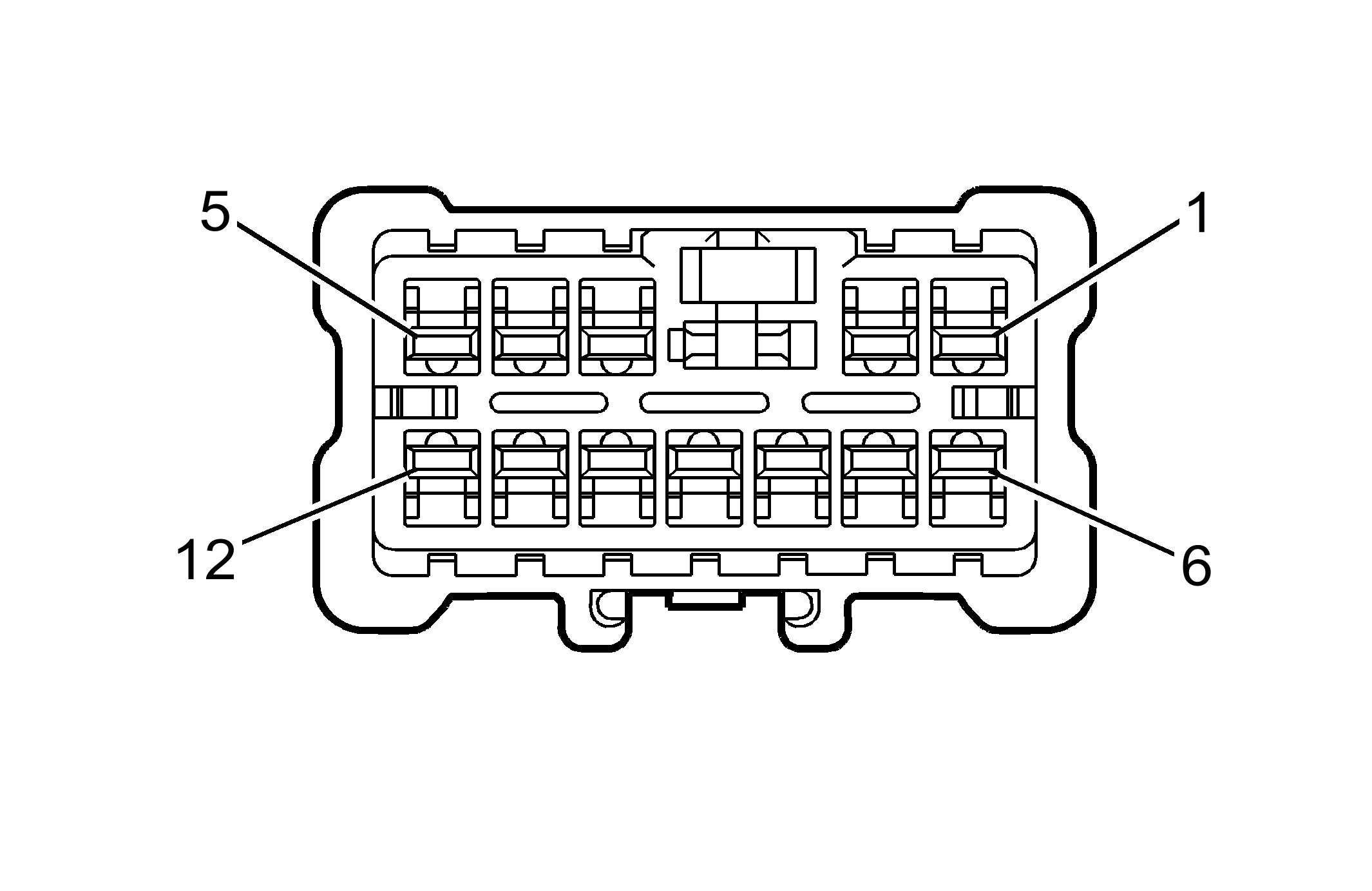

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: NS12MW-CS
- Service Connector: Service by Harness
- Description: 12-Way M (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
Not Available |
Not Available |
Service by Harness |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
BK |
PAE1 |
I |
- |
Ground |
1 |
- |
BK |
PAE1 |
II |
- |
| 2 |
- |
WH |
PD17 |
I |
- |
Door Lock Key Switch Lock Signal |
2 |
- |
PK |
PD17 |
II |
- |
| 3 |
- |
BN |
PD18 |
I |
- |
Door Lock Motor Lock Control |
3 |
- |
D-BU |
PD18 |
II |
- |
| 4 |
- |
WH |
PD19 |
I |
- |
Driver Door Lock Motor Unlock Control |
4 |
- |
D-GN |
PD19 |
II |
- |
| 5 |
- |
PU |
PA01 |
I |
- |
Power Window Supply Voltage |
5 |
- |
PK |
PA01 |
II |
- |
| 6 |
- |
L-BU |
PA20 |
I |
- |
Power Window Serial Data |
6 |
- |
L-BU |
PA20 |
II |
- |
| 7-10 |
- |
- |
- |
- |
- |
Not Occupied |
8-11 |
- |
- |
- |
- |
- |
| 11 |
- |
WH |
PD28 |
I |
- |
Door Lock Key Switch Unlock Signal |
11 |
- |
BK |
PD28 |
II |
- |
| 12 |
- |
D-BU |
PA02 |
I |
- |
Power Window Ignition Output |
12 |
- |
D-BU |
PA02 |
II |
- |
