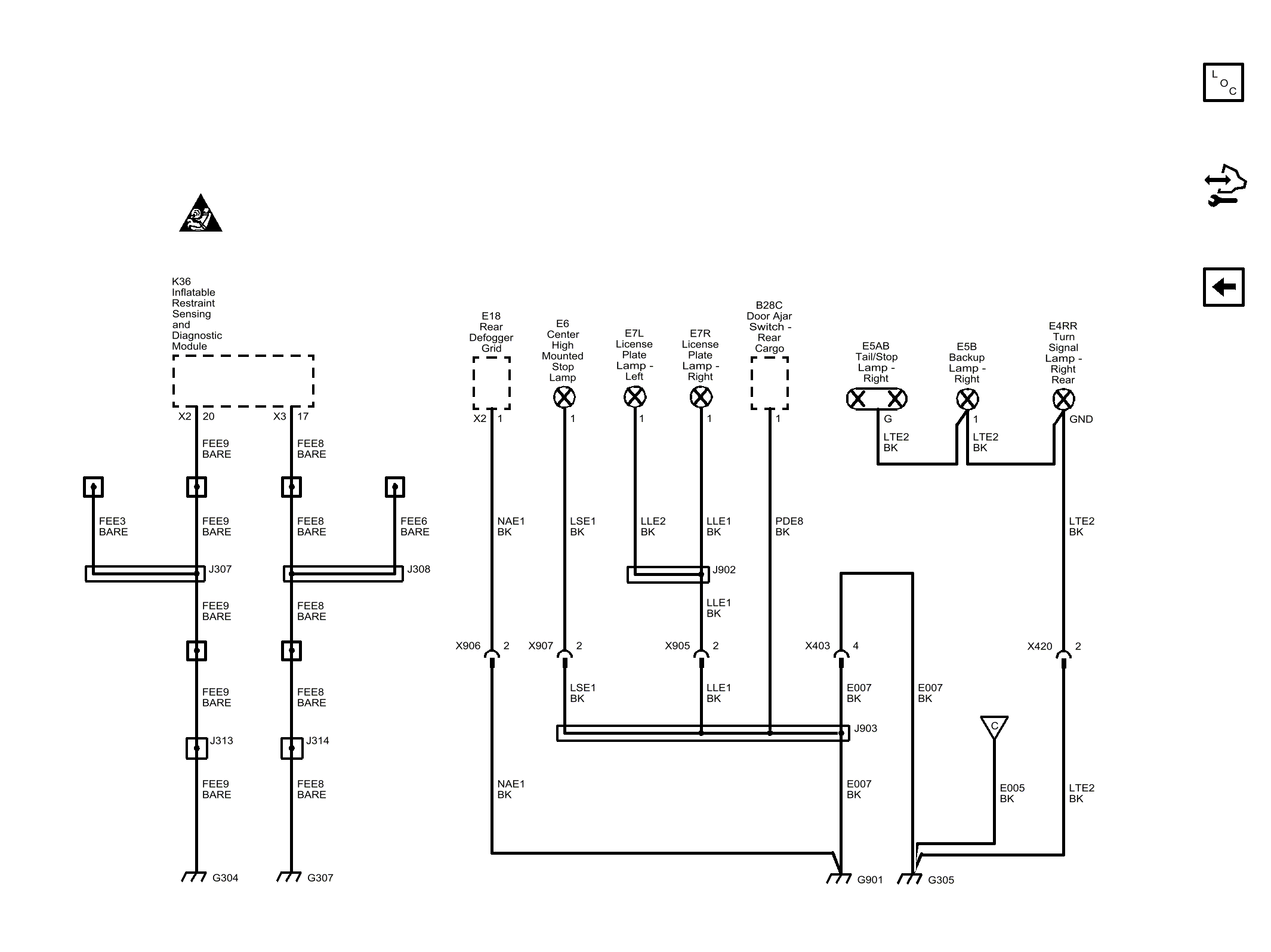

Home >> Chevrolet >> 2016 >> City Express LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G304. G305, G307, and G901
