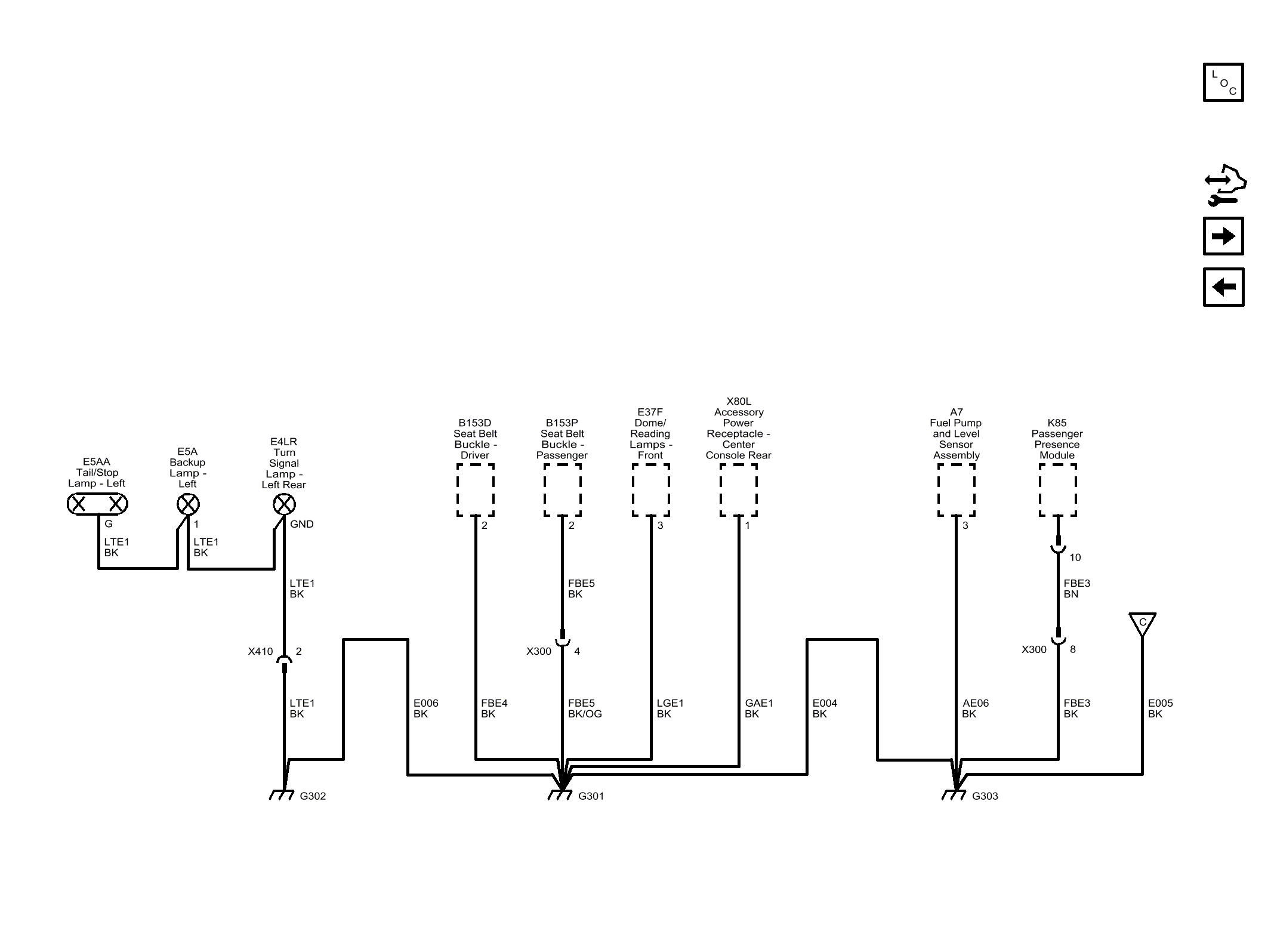

Home >> Chevrolet >> 2016 >> City Express LS >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing And Schematic Wiring Diagrams >> Wiring Harness Routing And Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G301, G302, and G303
