Removal Procedure

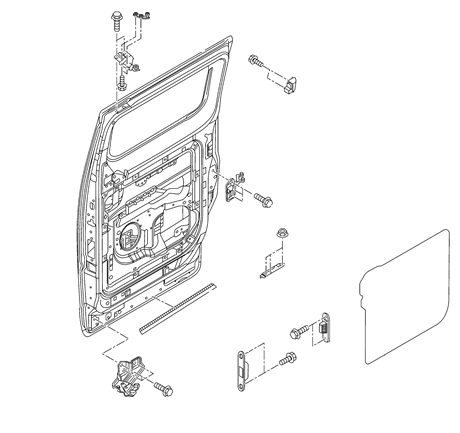

GM3820927Courtesy of
  1. Open and support the sliding side door.
    GM3820847Courtesy of
  2. Bolt (1) - Remove [2x]
  3. Upper Door Stopper (2) - Remove
    GM3820854Courtesy of
  4. Nut (1) - Remove [3x]
  5. Slide Door Checker (2) - Remove
    GM3820862Courtesy of GENERAL MOTORS COMPANY
  6. Bolt (1) @ Rear Side Door Center Roller - Remove [3x]
  7. Bolt (1) - Remove [2x]
  8. Rear Side Door Upper Roller Bracket (2) - Remove
  9. With the aid of an assistant, remove the upper roller and lower roller from the center track.
  10. Transfer components as necessary.
